Grade 6 high tensile bow shackles blue pin

Bow Shackles High Load Stamped

SKU: A11 Categories: ,

£5.36 £43.24 £5.36£43.24

Full Description

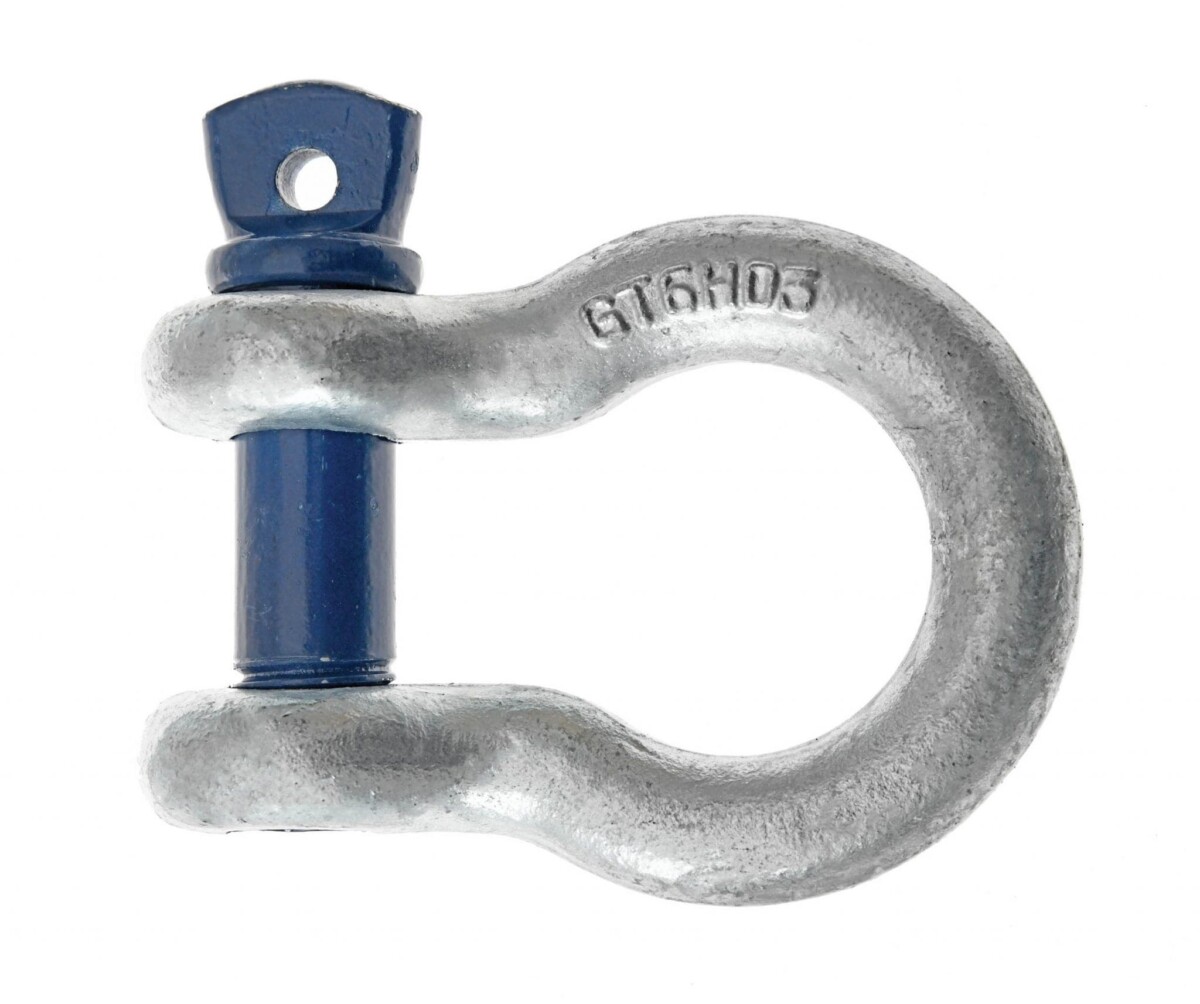

Blue pin bow shackles with screw collar pin in grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised finish.

Bow Shackle minimum breaking load is 6 times the W.L.L. marked with CE, W.L.L., manufacturers ID, size and traceability code.

Meets the W.L.L. requirements of EN13899 (from 0.5t to 25t). Temperature range 0 degrees C up to +200 degrees Celsius.

High Load Bow Shackles Blue Pin Dimensions
Product Code WLL (tonne) A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kgs)
A1104 1 9.5 11 17 36.5 26 0.15
A1106 2 12.7 16 20.6 47.3 32 0.37
A1107 3.25 16 19.8 27 60.5 43 0.65
A1108 4.75 19 22 32 71.5 51 1.04
A1109 6.5 21.7 27 36.6 84 58 1.56
A1110 8.5 25.4 30 43 96 68 2.32
A1112 12 31.5 36 51.6 119 83 4.51
A1114 17 38 42 60 147 99 7.89
