Indexator IR12 Rotators

IR series rotators from Indexator are designed for the toughest of applications and working environments and are available in a range of sizes and models. IR Rotators incorporate a twin taper roller bearing design in robust housings and are available with static load ratings up to 45 tonnes. IR Rotators are designed to be mounted inside the headstock of attachments and can be supplied with mounting adaptors, upper suspension links and hose guards to suit each specific application. Similar in construction to the IR10, the IR12 rotator has dual oil feed ports to each side making it ideal for use with heavy duty timber grapples. The IR12 employs a high torque slew motor suitable for use in the most demanding applications. 25 tonne lifting capacity.

Read more
Full Description

IR series rotators from Indexator are designed for the toughest of applications and working environments and are available in a range of sizes and models. IR Rotators incorporate a twin taper roller bearing design in robust housings and are available with static load ratings up to 45 tonnes.

IR Rotators are designed to be mounted inside the headstock of attachments and can be supplied with mounting adaptors, upper suspension links and hose guards to suit each specific application.

Similar in construction to the IR10, the IR12 rotator has dual oil feed ports to each side making it ideal for use with heavy duty timber grapples.

The IR12 employs a high torque slew motor suitable for use in the most demanding applications.

25 tonne lifting capacity.

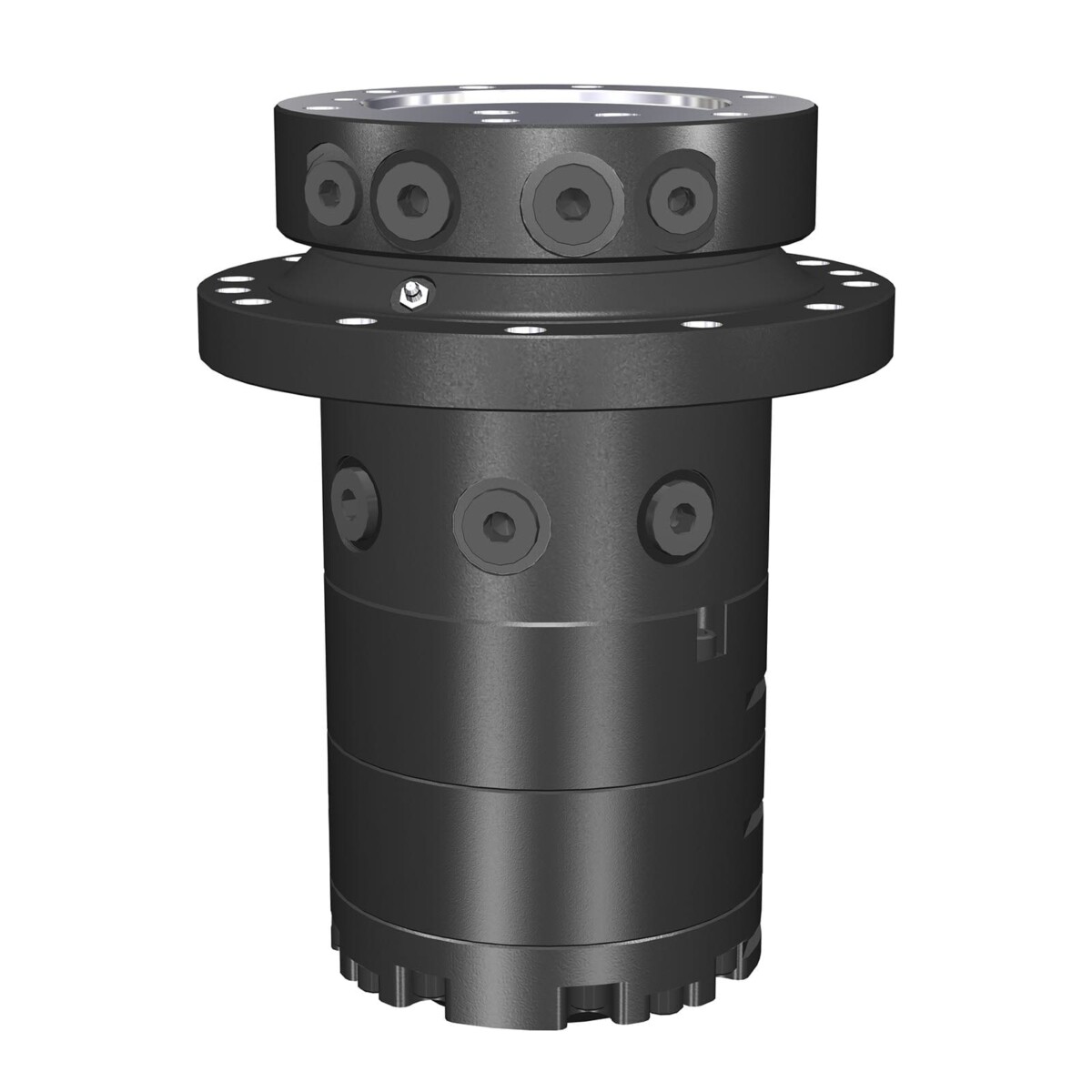

Indexator IR12 Hydraulic Rotators

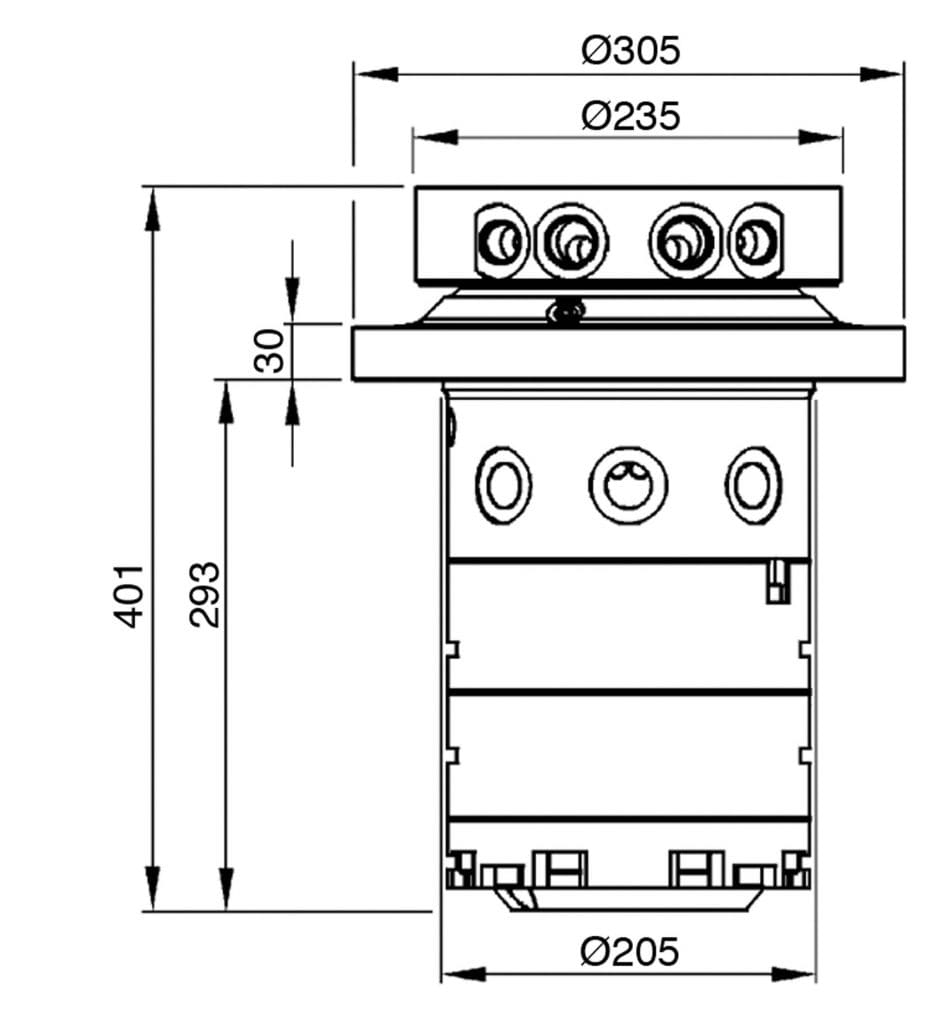

Technical DataModel IR12
RotationContinuous
Weight97kg
Max Axial Load Static±250kN
Max Axial Load Dynamic±70kN
Torque at 20MPa (2900psi)2900Nm
Recommended Oilflow25 l/min
