Indexator IR20 Rotators
The ultimate industrial rotator
IR series rotators from Indexator are designed for the toughest of applications and working environments and are available in a...
Read more

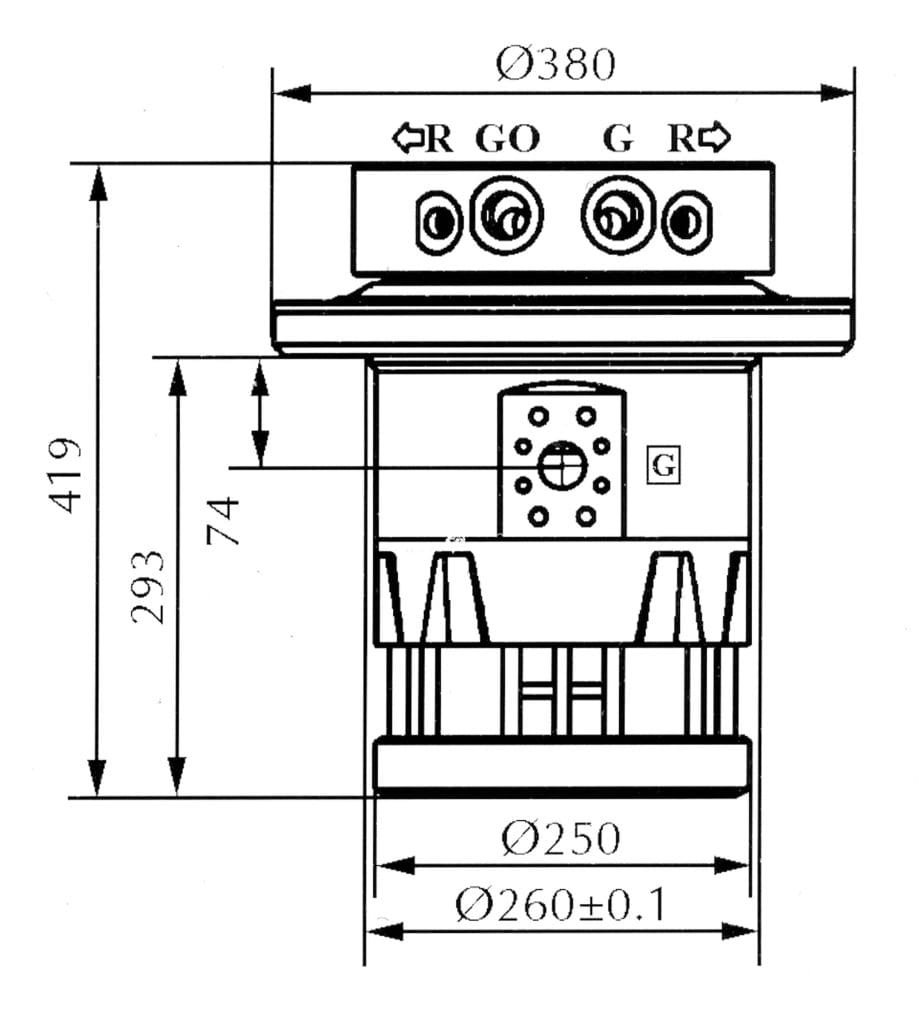

Indexator IR20 Rotators - Specifications
| Indexator IR20 Hydraulic Rotator | |
| Technical Data | Model IR20 M24 |
| Upper Bolt Hole Diameter | 24mm |
| Rotation | Continuous |
| Weight | 150kg |
| Max Axial Load Static | ±450kN |
| Max Axial Load Dynamic | ±120kN |
| Torque at 20MPa (2900psi) | 3300Nm |
| Recommended Oilflow | 35 l/min |
Full Description
IR series rotators from Indexator are designed for the toughest of applications and working environments and are available in a range of sizes and models. IR Rotators incorporate a twin taper roller bearing design in robust housings and are available with static load ratings up to 45 tonnes.
IR Rotators are designed to be mounted inside the headstock of attachments and can be supplied with mounting adaptors, upper suspension links and hose guards to suit each specific application.
The ultimate industrial rotator, IR20 is designed for extremely demanding working environments. Built to the same overall design and exacting standards as the IR10, the IR20 incorporates heavy duty bearings capable of taking static loads up to 45 tonnes.
