Indexator XR300LS Rotators
Indexator XR300 rotators are designed for both rigid and swing mounting applications. With a max axial load of 9 tonnes the XR300 is most suited to applications involving medium to large class excavators/material handling cranes and equipment. The XR300 is available in several bolt mounting options, in addition the XR300LS P allows the possibility to route cabling through the centre of the rotator for auxiliary electrical functions. The XR300 LS P AV rotator is designed for the toughest of Harvesting head applications, allowing for electrical cables to be installed through the rotator body. The XR300 LS P AV is machined to allow rotator oil connections to be positioned underneath the rotator to ensure complete security for oil hoses.
Indexator XR300 rotators are designed for both rigid and swing mounting applications.
With a max axial load of 9 tonnes the XR300 is most suited to applications involving medium to large class excavators/material handling cranes and equipment.
The XR300 is available in several bolt mounting options, in addition the XR300LS P allows the possibility to route cabling through the centre of the rotator for auxiliary electrical functions.
The XR300 LS P AV rotator is designed for the toughest of Harvesting head applications, allowing for electrical cables to be installed through the rotator body.

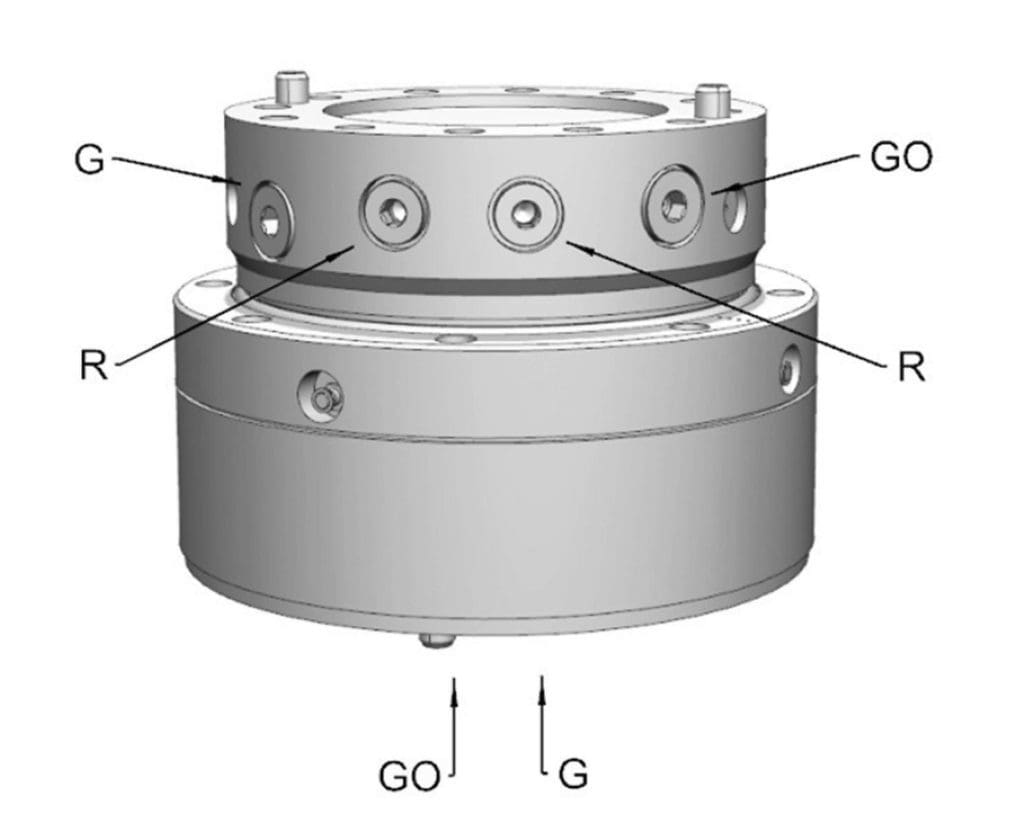

The XR300 LS P AV is machined to allow rotator oil connections to be positioned underneath the rotator to ensure complete security for oil hoses.
| Indexator XR300 Hydraulic Rotators | |
| Technical Data | Model XR300LS |
| Max Rotational Torque | 3000Nm |
| Weight | 77kg |
| Max Working Pressure Rotator Motor | 25Mpa |
| Max Working Pressure Grapple | 35Mpa |
| Max Axial Load Static | 300Kn |
| Max Axial Load Dynamic | 90Kn |
| Max Axial Load at 90 degree tilt (fixed) | 70Kn |
| Outside Diameter | 300mm |
| Height | 206.3mm |
