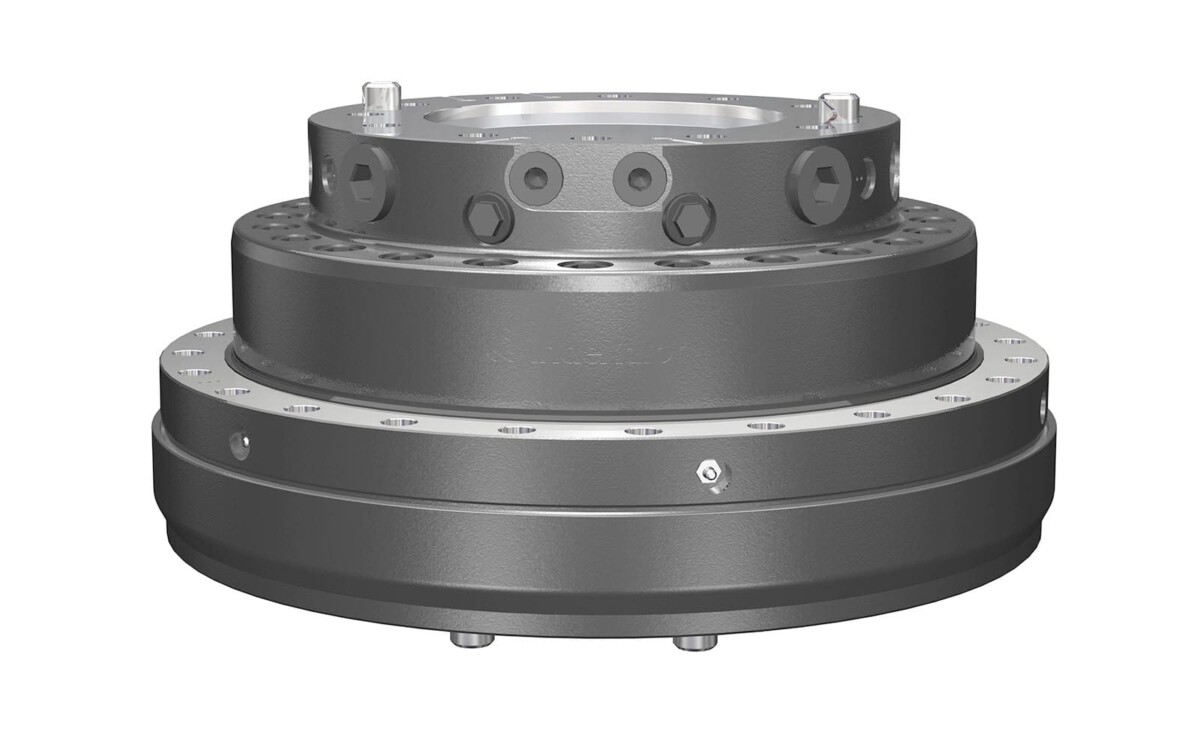

Indexator XR500 Rotators
Designed for both rigid and swing mounted applications, the XR500 rotator has an axial load capacity of 70 tonnes making it suitable for large excavators working in the toughest of working environments. A range of upper mountings and links is available for XR500 and bespoke mountings can be manufactured to suit customers specific requirements.
Read more
Full Description
Designed for both rigid and swing mounted applications, the XR500 rotator has an axial load capacity of 70 tonnes making it suitable for large excavators working in the toughest of working environments.
A range of upper mountings and links is available for XR500 and bespoke mountings can be manufactured to suit customers specific requirements.
Data Sheet
| Indexator XR500 Hydraulic Rotators | |
| Technical Data | Model XR500 |
| Max Rotational Torque | 7000Nm |
| Weight | 216kg |
| Max Working Pressure Rotator Motor | 25Mpa |
| Max Working Pressure Grapple | 35Mpa |
| Max Axial Load Static | 700Kn |
| Max Axial Load Dynamic | 250Kn |
| Max Axial Load at 90 degree tilt (fixed) | 180Kn |
| Outside Diameter | 503mm |
| Height | 228.5mm |
