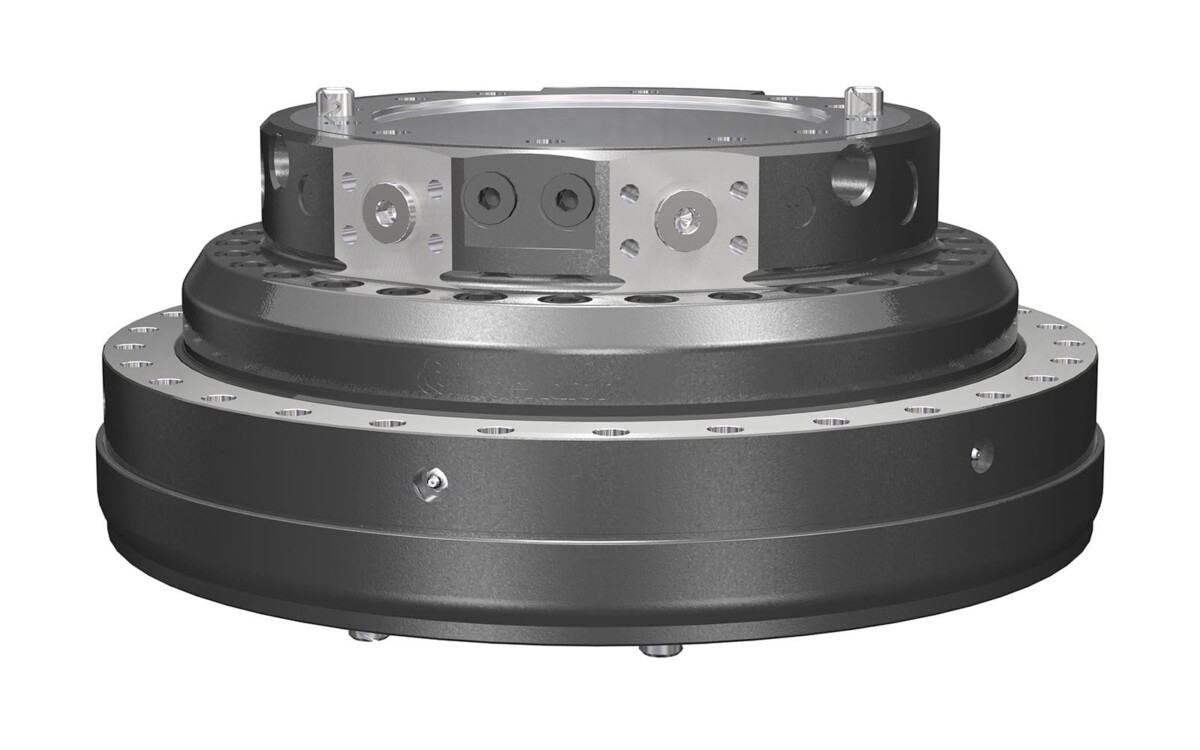

Indexator XR600 Rotators
The largest rotator in the Indexator XR range, the XR600 has an axial load capacity of 85 tonnes and can be used in both swing and rigid mounted applications in the most severe working environments. Employing large thrust load bearings, the XR600 can be used on very large excavators. Links and mountings can be manufactured for XR600 to suit customer requirements.
Read more
Full Description
The largest rotator in the Indexator XR range, the XR600 has an axial load capacity of 85 tonnes and can be used in both swing and rigid mounted applications in the most severe working environments.
Employing large thrust load bearings, the XR600 can be used on very large excavators.
Links and mountings can be manufactured for XR600 to suit customer requirements.
Data Sheet
| Indexator XR600 Hydraulic Rotators | |
| Technical Data | Model XR600 |
| Max Rotational Torque | 7000Nm |
| Weight | 264kg |
| Max Working Pressure Rotator Motor | 25Mpa |
| Max Working Pressure Grapple | 35Mpa |
| Max Axial Load Static | 850Kn |
| Max Axial Load Dynamic | 300Kn |
| Max Axial Load at 90 degree tilt (fixed) | 200Kn |
| Outside Diameter | 575mm |
| Height | 231mm |
