MaxVal Spindle Wedge
£680.00 £816.00 Inc Vat
Spindle wedge with 30 tonne lifting capacity
Focused on maximum lifting power with simple construction, the MaxVal by BaSt-Ing GmbH is the largest spindle wedge in the...
Read more
Full Description
Focused on maximum lifting power with simple construction, the MaxVal by BaSt-Ing GmbH is the largest spindle wedge in the range providing a maximum lift of 30 tonnes making it the perfect wedge for felling large diameter trees.

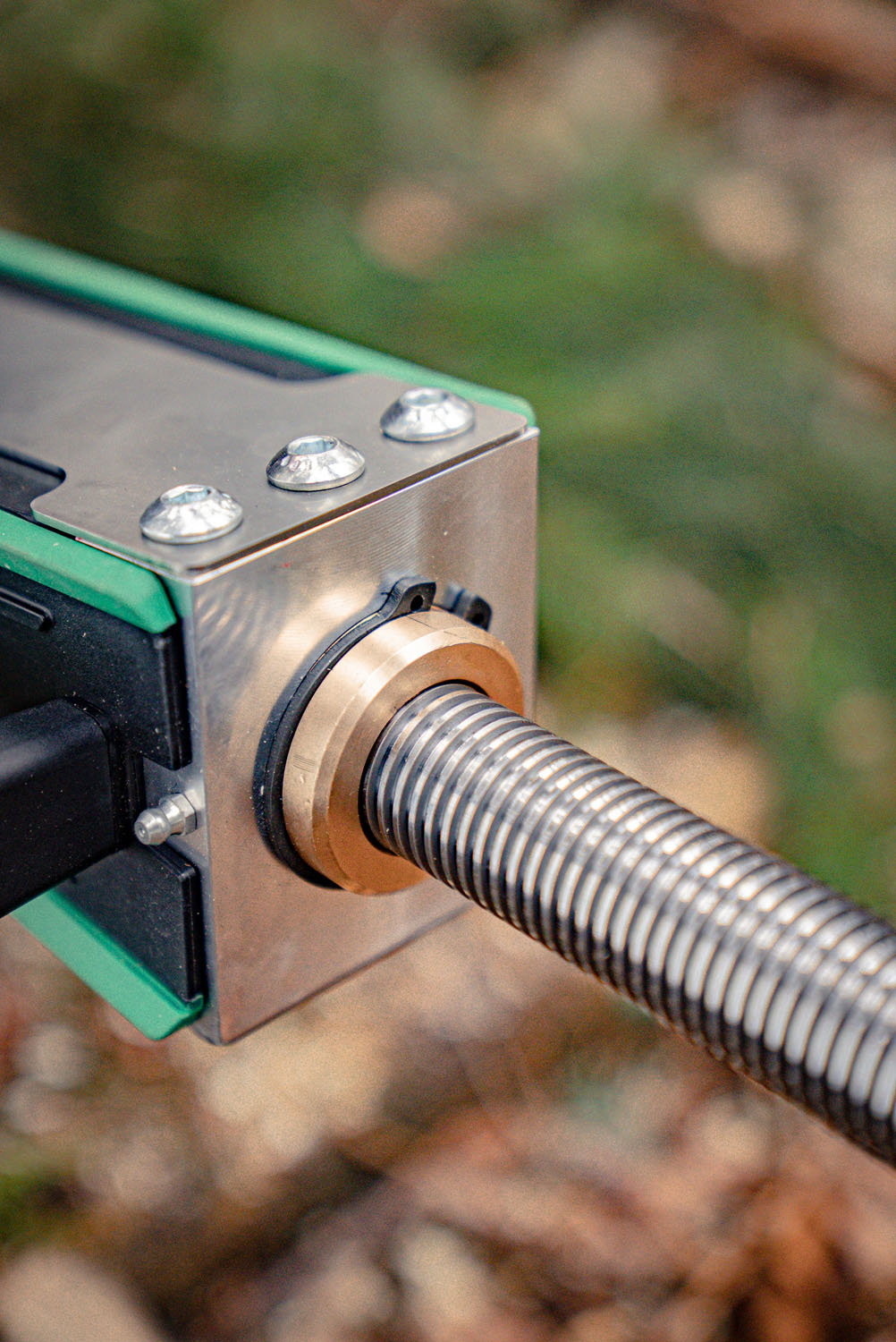

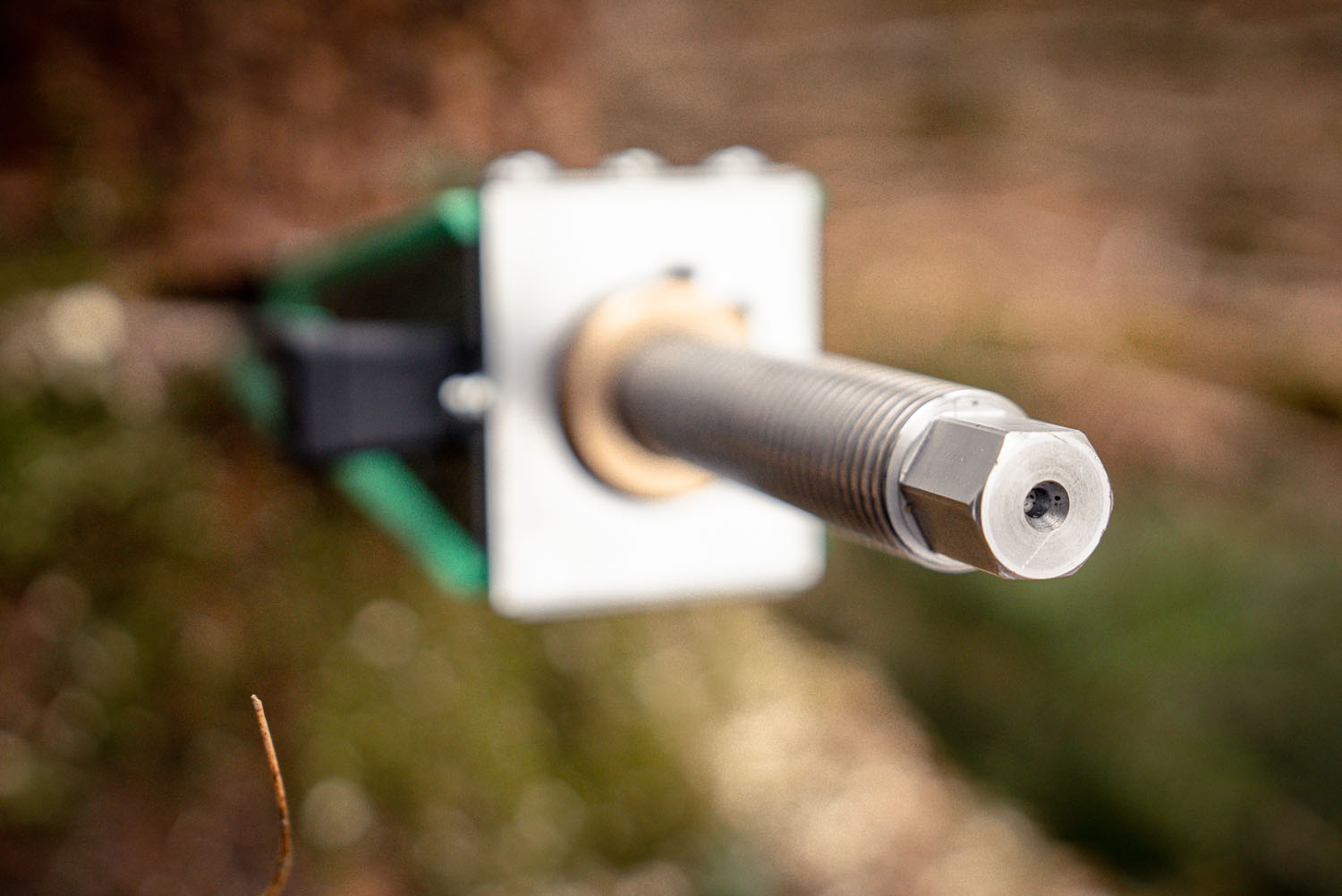

The drive spindle is made of 32mm thick CrMo steel for strength. The MaxVal is driven by a 24mm wrench size on an impact wrench. The drive spindle is partially integrated in the MaxVal, which means that half of the spindle is protected in the wedge tip. The second, shorter half of the locker protrudes 140mm from the felling wedge.
The following impact wrenches are compatible for use with the MaxVal spindle wedge:
Makita DTW1002 & DTW1001
Makita TW001G
Milwaukee ONFHIWF12 and ONEFHIWF34
Bosch GDS18V-1050H
DeWalt DCF899
Benefits
Lifting capacity: 30t
Wedge angle: 14°
Weight: 6.0kg
Impact wrench from 1000Nm
Length: 52cm
Wedge width: 8cm
Total width: 13cm
Lifting height: 8cm
Width across flats: 24mm
Spindle diameter: 32mm
Spindle material: CrMo – steel – highly tempered
Thread pitch: 6mm
Please Note: A combination with the ValLink (tape control) is not possible
