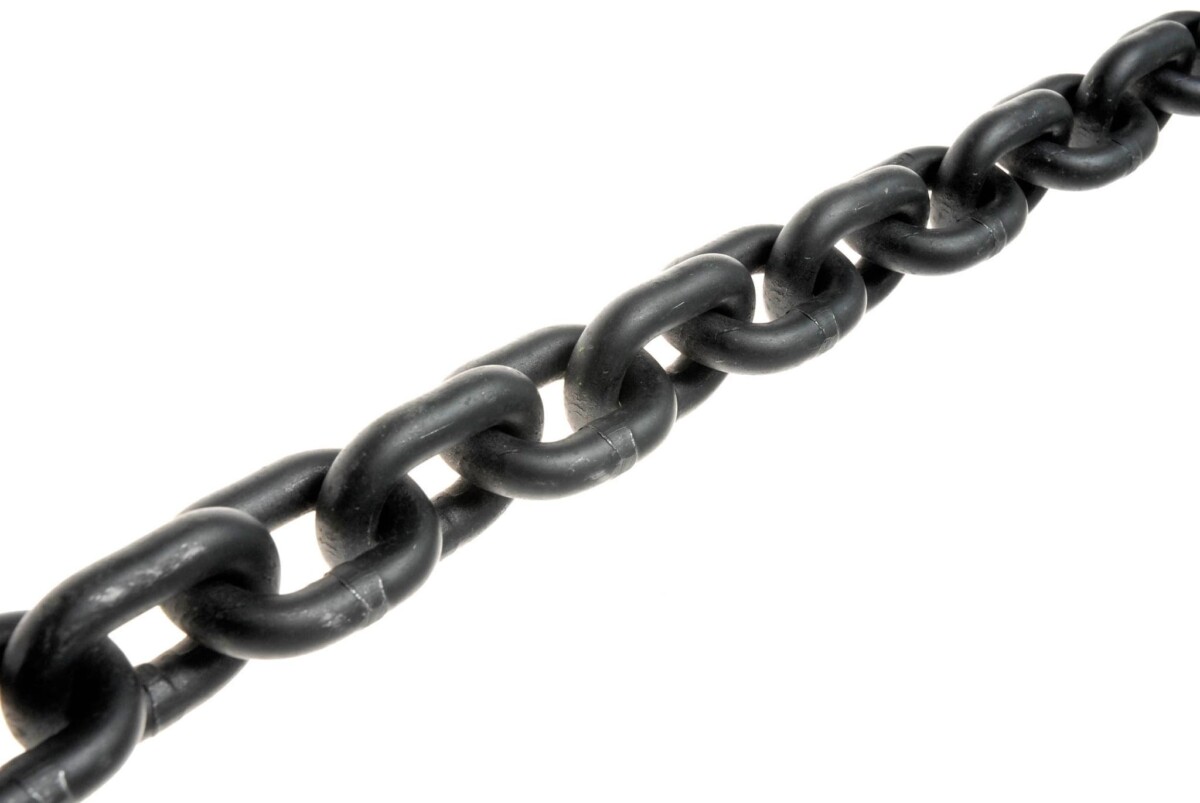

Short Link Chain Grade 80
£10.91 – £24.62 £10.91–£24.62
Grade 80 short link chain made from alloy steel, quenched and tempered. Minimum breaking load is 4 times the W.L.L. Marked with material grade, manufacturers ID and traceability code. Meets the W.L.L. performance requirements of BS EN818-2.
Read more
Full Description
Grade 80 short link chain made from alloy steel, quenched and tempered.
Minimum breaking load is 4 times the W.L.L. Marked with material grade, manufacturers ID and traceability code.
Meets the W.L.L. performance requirements of BS EN818-2.
| Grade 80 Short Link Chain Dimensions | |||||||
| Part No. | dn (mm) | D (mm) | W1 (mm) | WLL (tonnes) | MPF (kN) | MBF (kN) | Weight (kg/mtr) |
| K0137 | 8 | 24 | 10.8 | 2 | 50.3 | 80.4 | 1.85 |
| K0132 | 10 | 30 | 14 | 3.15 | 78.5 | 126 | 2.2 |
| K0133 | 13 | 39 | 17.5 | 5.3 | 133 | 212 | 3.8 |
| K0134 | 16 | 48 | 21.5 | 8 | 201 | 322 | 5.7 |
