Powerhand GT Log Sorting Grapple

SKU: GTSERIES Categories: ,

Powerhand

A grapple specifically designed for single log handling

Whether sorting logs on a line or handling single poles, the GT log grapple is the perfect grapple for this...

Read more

Enquire

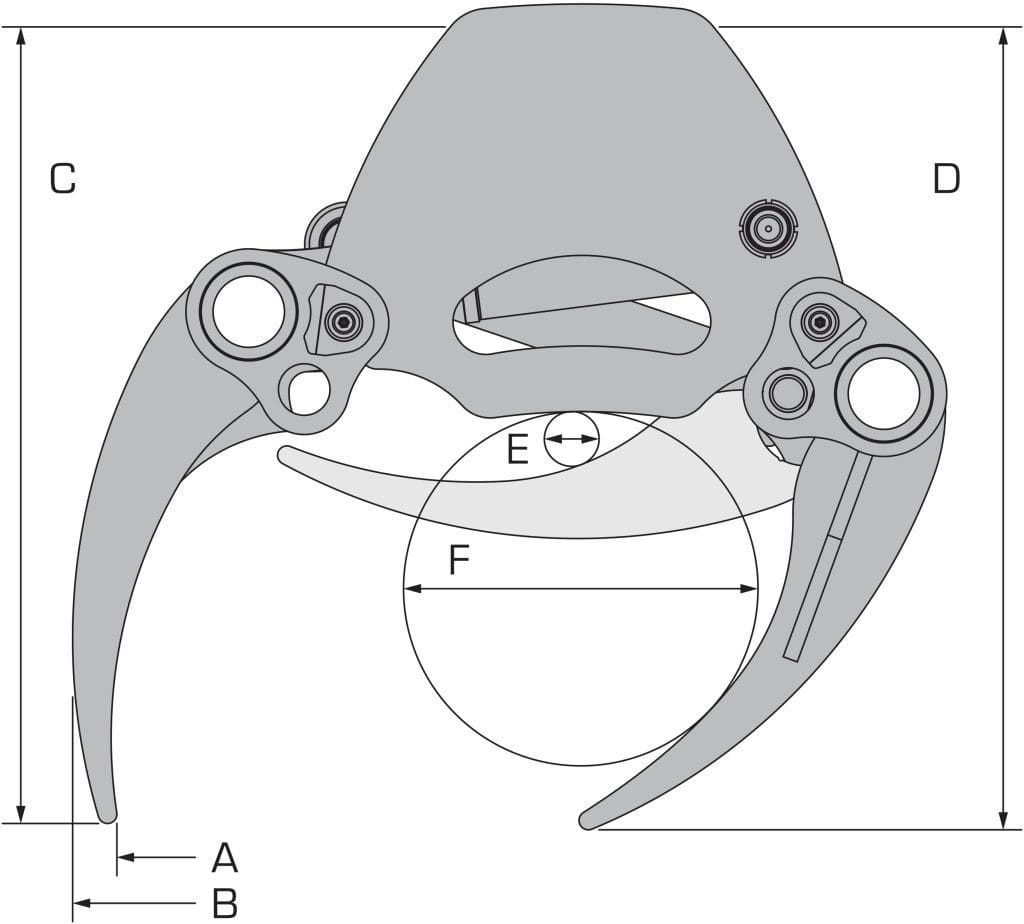

Powerhand GT Log Sorting Grapple - Specifications

Dimensions GT15 GT20
Capacity 0.15m2 0.20m2
Weight (Excluding Rotator) 220kg 240kg
Jaw Opening A 1010mm 970mm
Overall Opening B 1100mm 1100mm
Open Height C 854mm 910mm
Tip to Tip Height D 860mm 915mm
Min Gripping Diameter E Ø56mm Ø56mm
Max Gripping Diameter (Tip to Tip) F Ø377mm Ø440mm
Overall Width 416mm 416mm
Width at Tips 244mm 244mm

Full Description

Whether sorting logs on a line or handling single poles, the GT log grapple is the perfect grapple for this task. Penetrate piles of stacked material like never before with the GT grapple’s narrow finger-like tine design and keep your log line moving at unprecedented speed with the fast action of the legs.

Trusted by many of the largest sawmills in Europe, the Powerhand GT log sorting grapple is the smallest grapple in the Powerhand sawmill range.

Powerhand GT grapples are specially designed for sorting misaligned logs.

Capacity ranges from 0.15m² to 0.20m²

Benefits

Finger like tines Penetrate the log pile to easily pick up a single log. The GT Series features a purpose built leg design, allowing you to penetrate between logs and grab a single one. The traditional curved leg shape of a log bundling grapple causes the tines to stick on top of adjacent logs when attempting to pick up a single log. That is why we have designed the GT series legs to be straighter and narrower, providing great single log picking dexterity. Your grapple will never jam on top of the log pile again.

DataSheet

Specifications

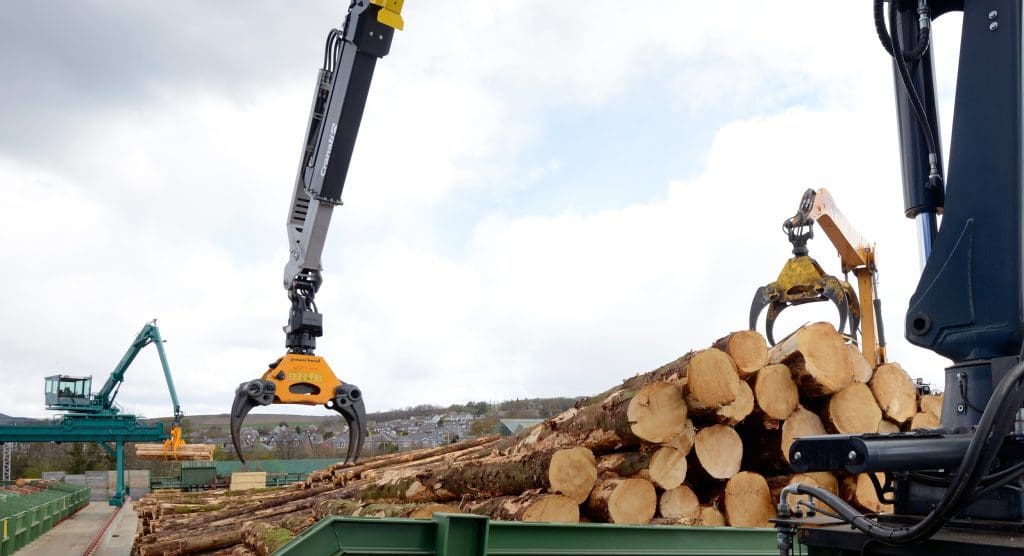

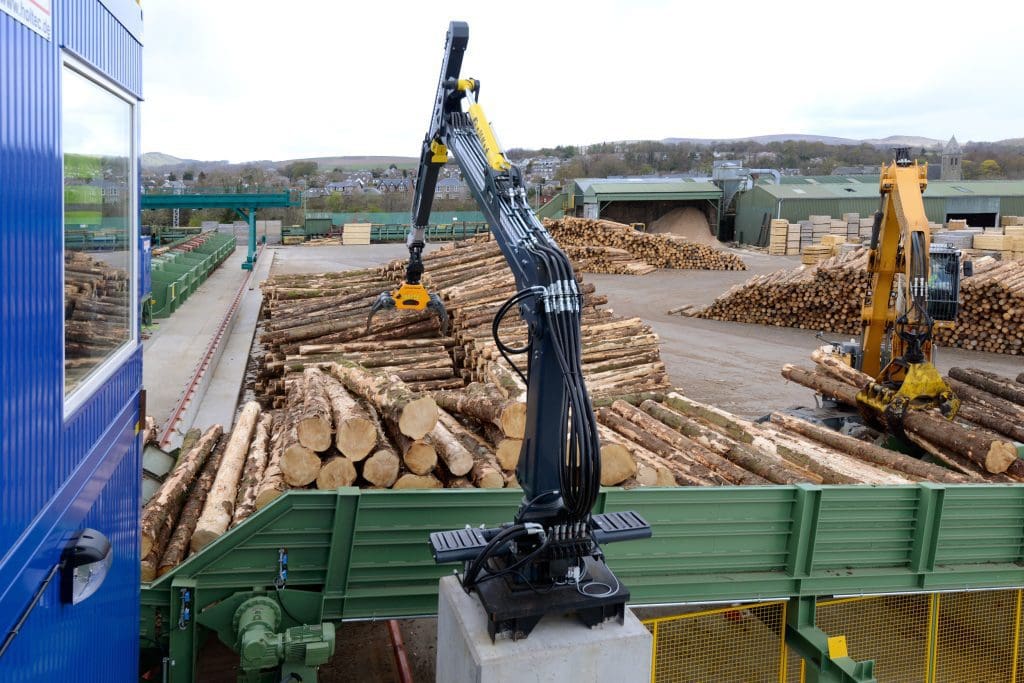

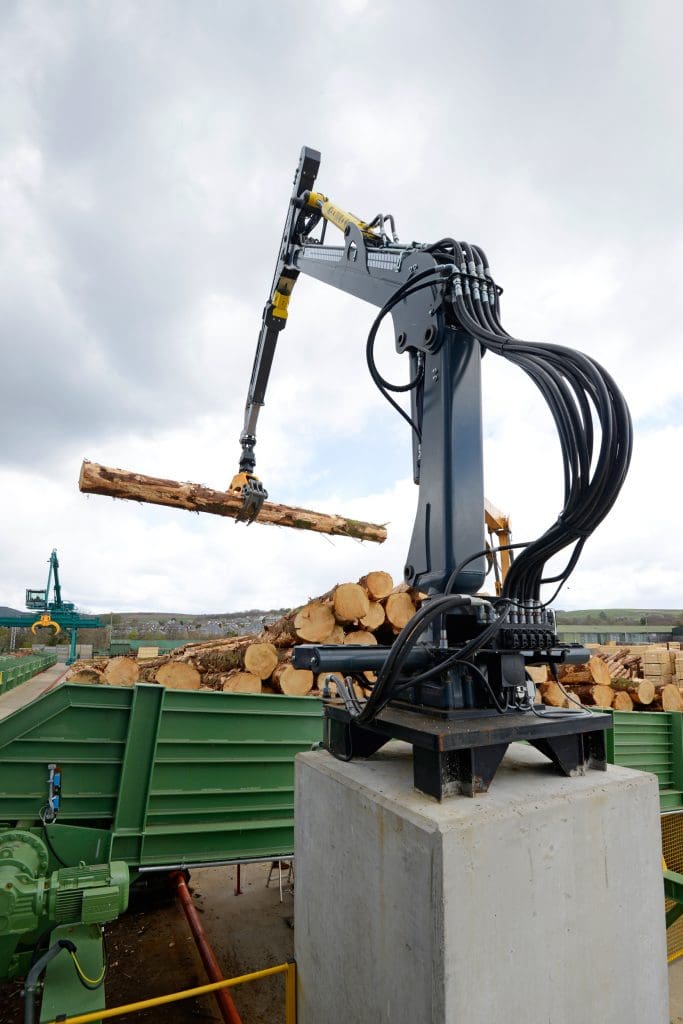

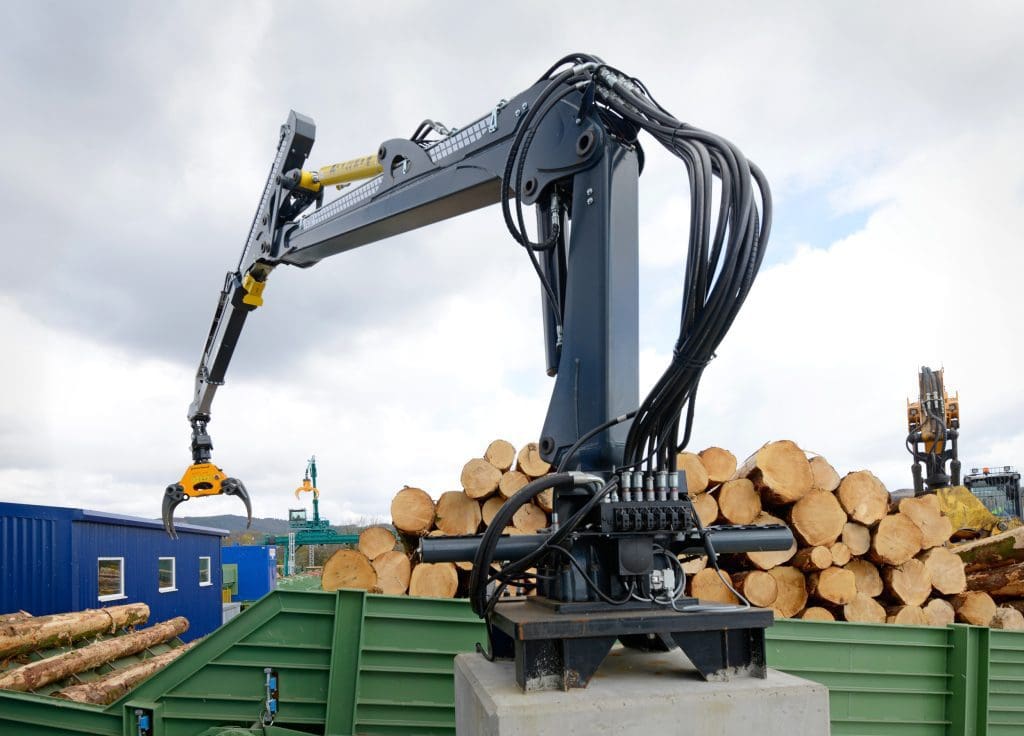

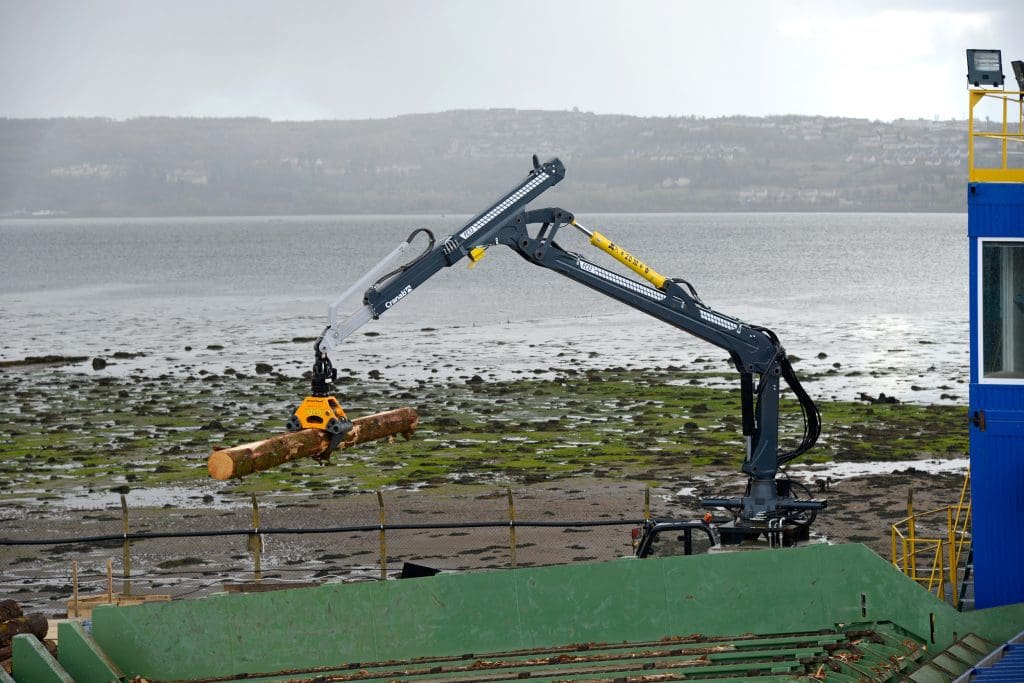

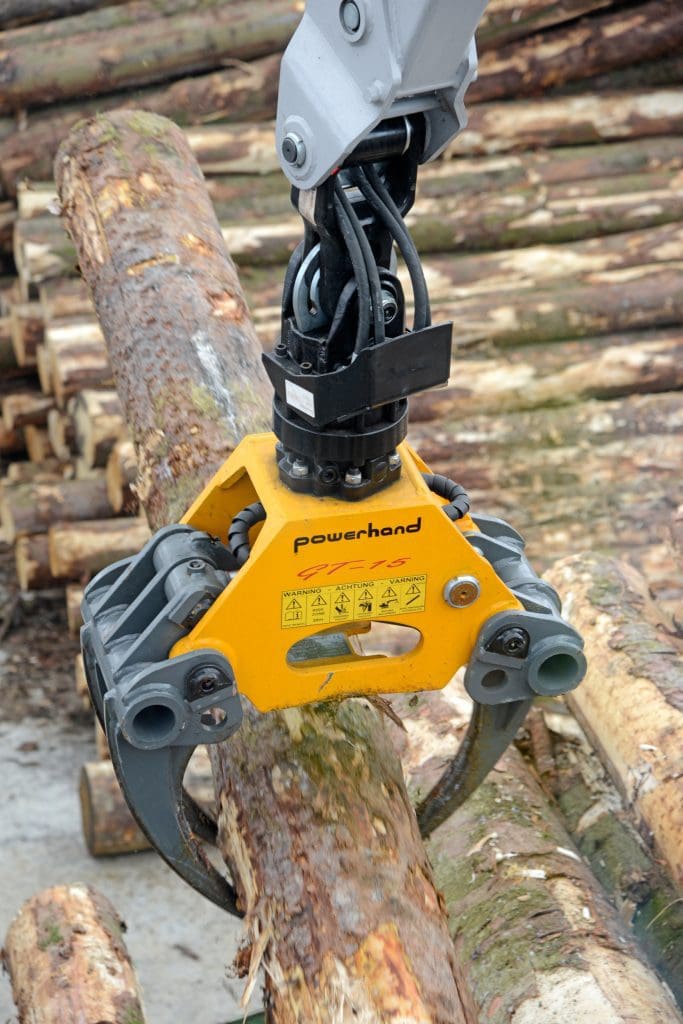

Working Images
