Powerhand SG Sorting Grapple
Multipurpose heavy duty sorting grapple
The Powerhand SG grapple is a multipurpose, heavy duty sorting grapple for use on excavators in materials handling operations in...
Read more
Powerhand SG Sorting Grapple - Specifications
Download Specification| SG80 | SG140 | SG160 | SG200 | ||
| Excavator Size | 6 to 10 tonne | 10 to 16 tonne | 14 to 20 tonne | 18 to 30 tonne | |
| Weight | 390kg | 565kg | 755kg | 955kg | |
| Opening | A | 1700mm | 1917mm | 2100mm | 2300mm |
| Max Opening | B | 1760mm | 1980mm | 2165mm | 2370mm |
| Open Height | C | 740mm | 795mm | 909mm | 1025mm |
| Tip to Tip Height | D | 1010mm | 1077mm | 1196mm | 1345mm |
| Clearance | E | 340mm | 370mm | 438mm | 510mm |
| Width at Tips | F | 700mm | 800mm | 950mm | 1100mm |
| Capacity | 280 litres | 350 litres | 500 litres | 750 litres |
Full Description

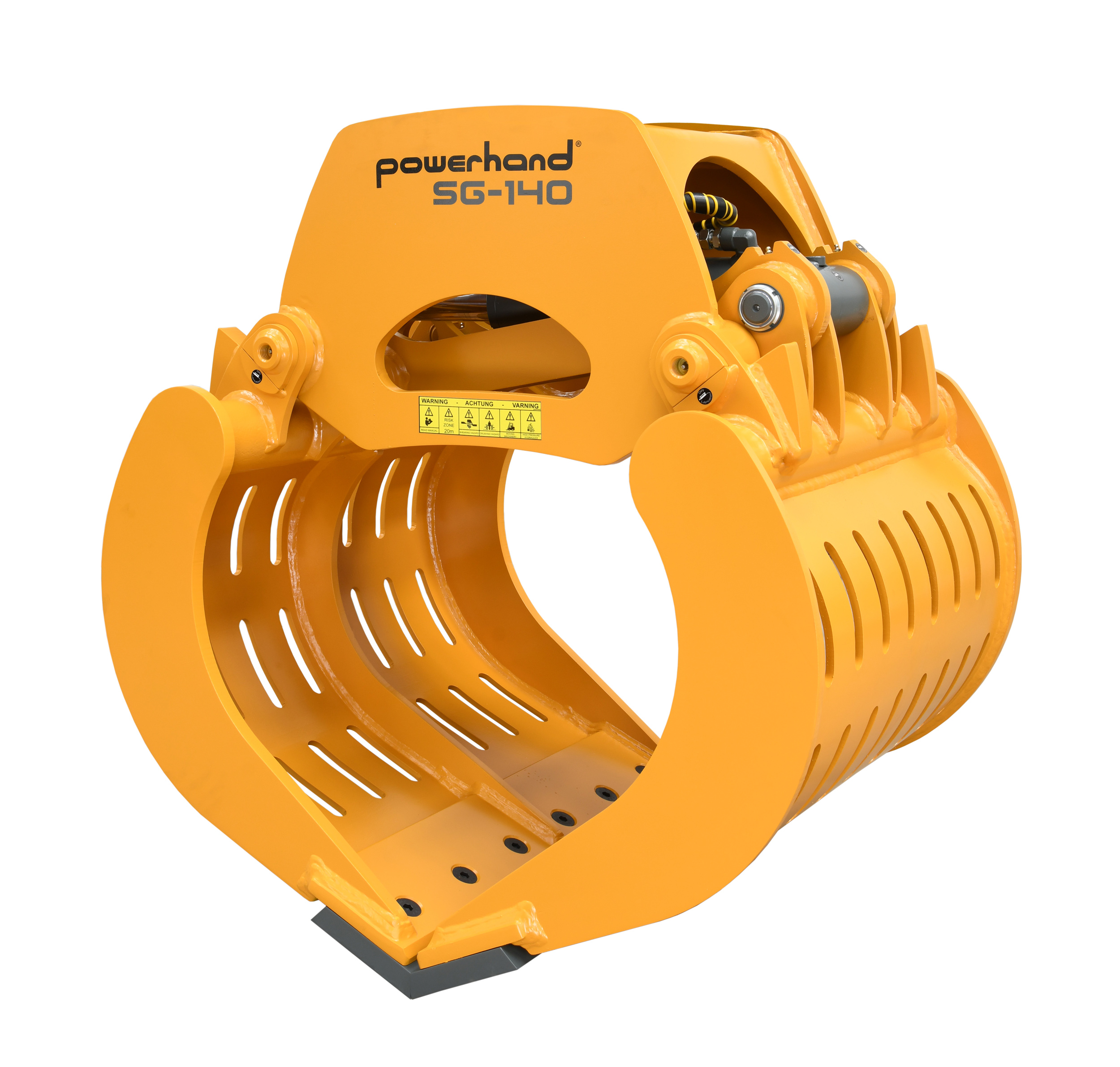

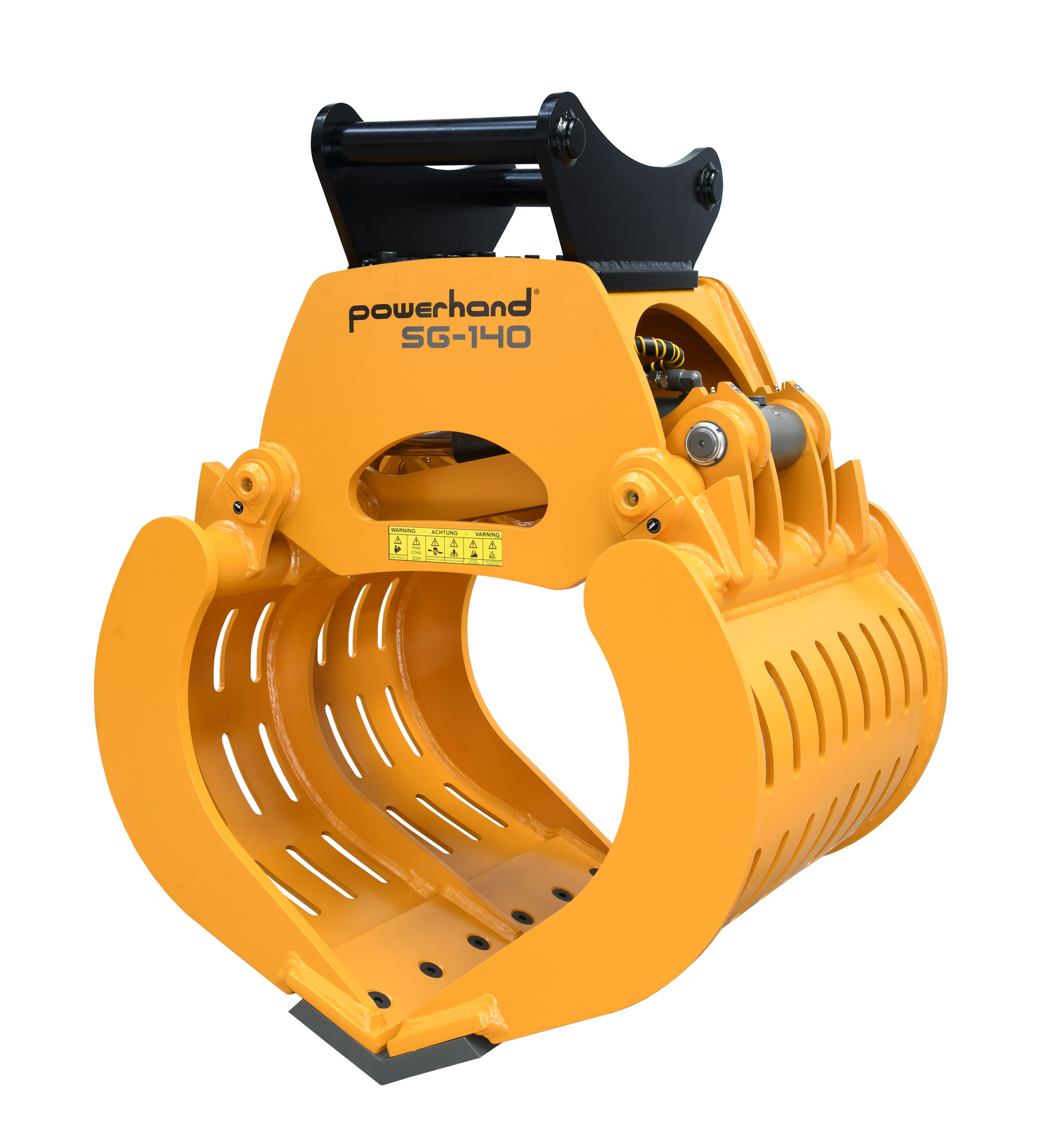

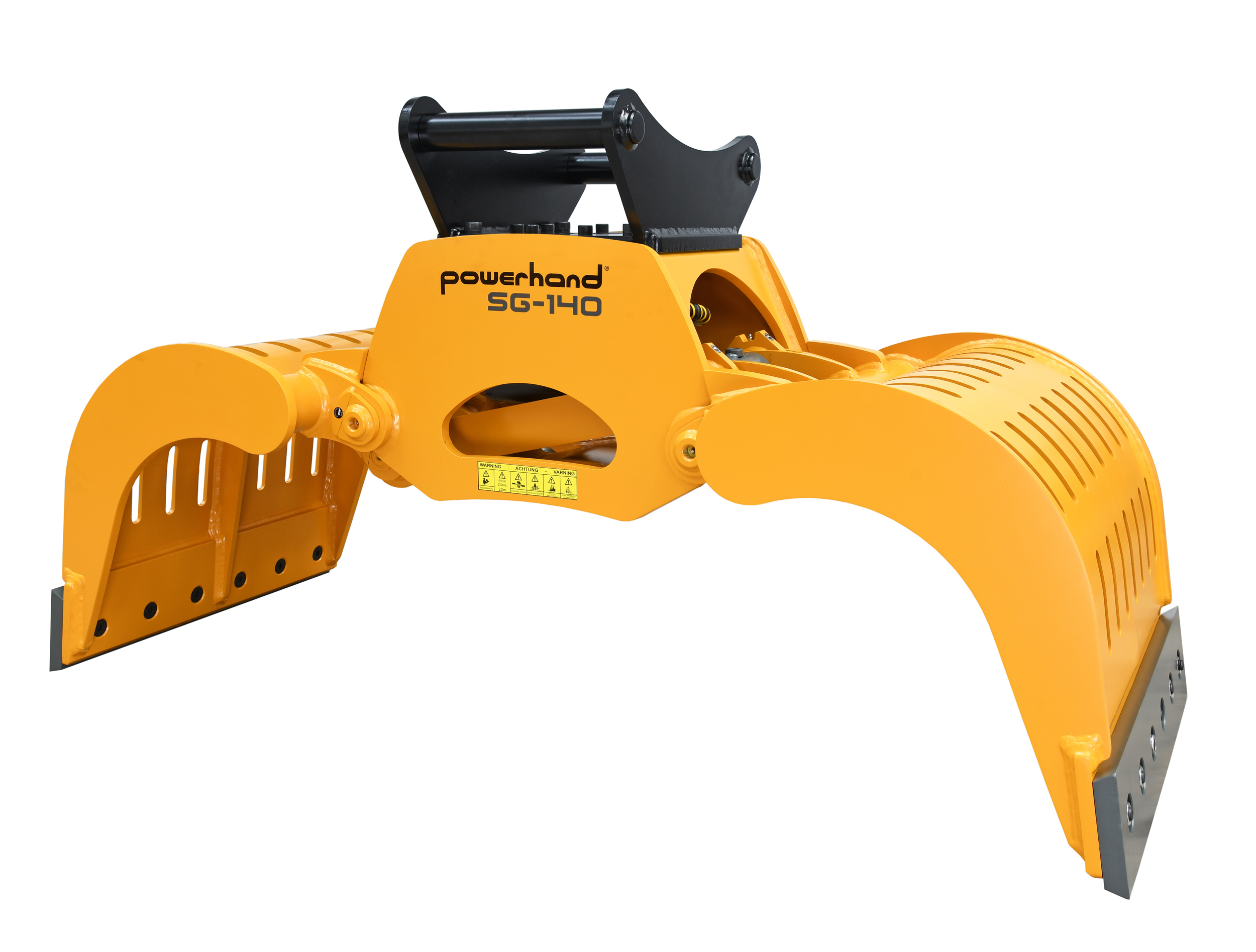

The Powerhand SG grapple is a multipurpose, heavy duty sorting grapple for use on excavators in materials handling operations in a wide range of industrial applications.

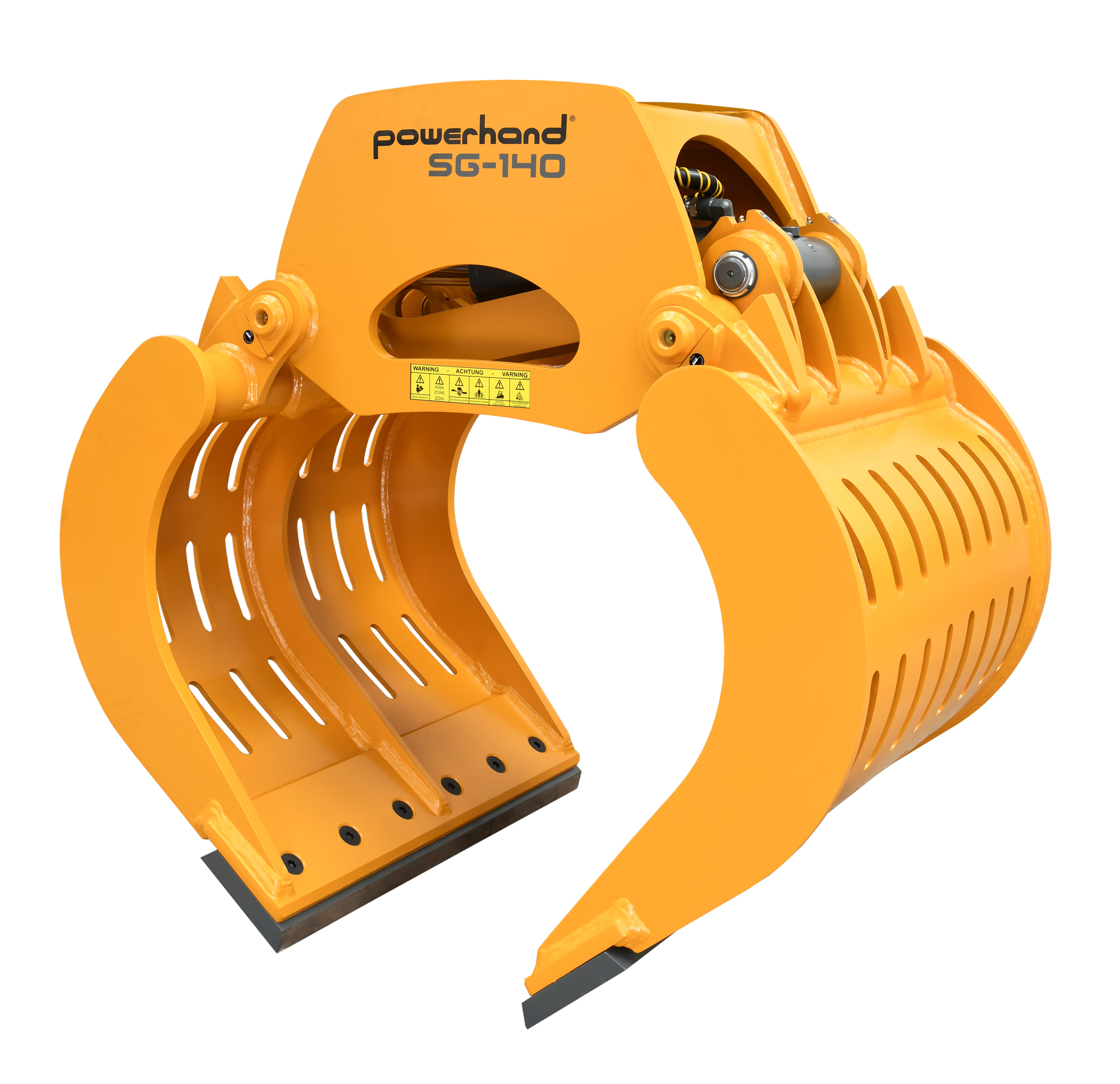

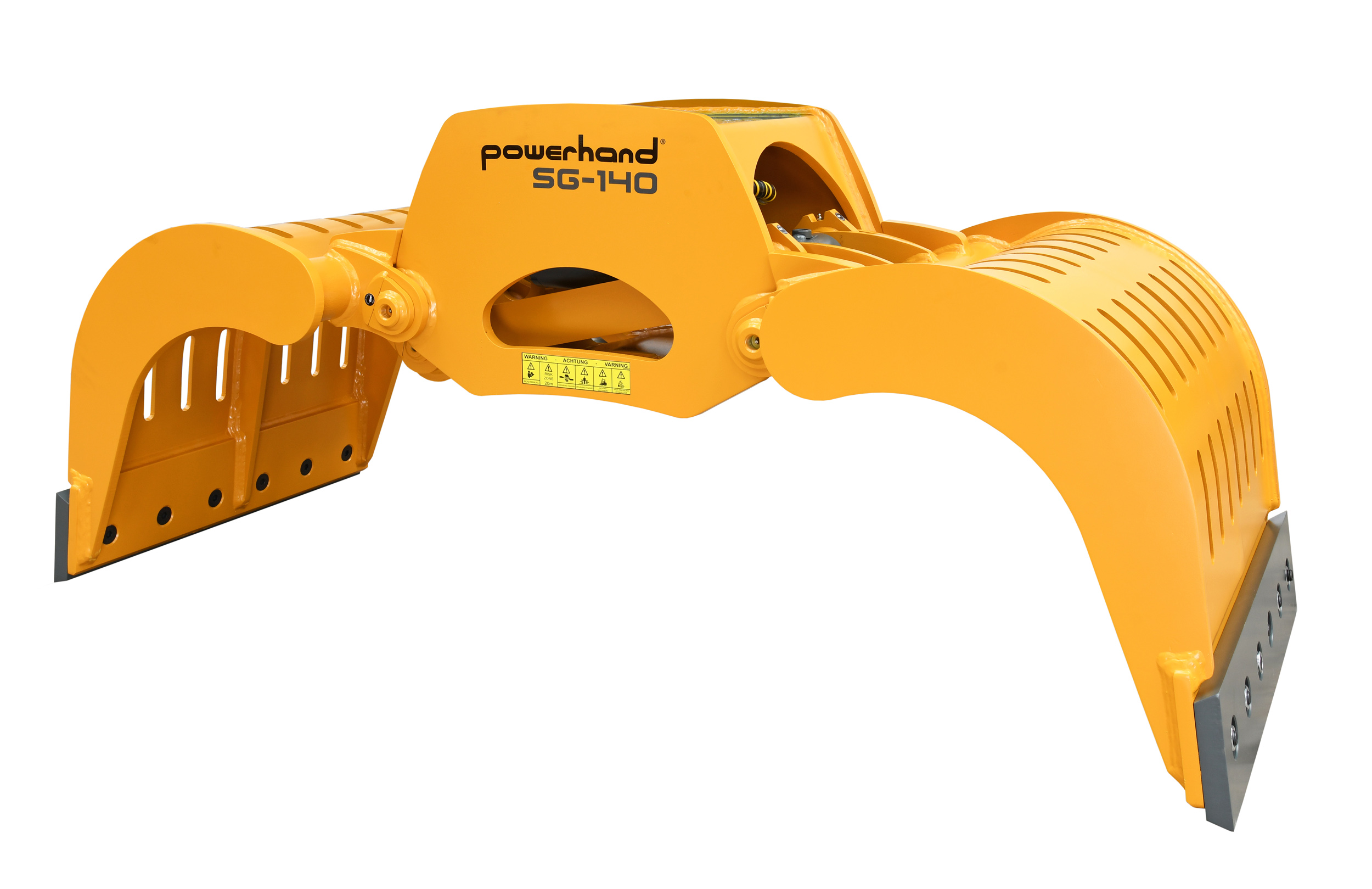

The grapple design is optimised to maximise operating efficiencies by utilising a fast-acting geometry for speed, large bore hydraulic cylinders for power and a construction of high strength materials for minimum downtime. Featuring a unique geometry which allows the grapple leg to open beyond vertical to increase opening span, the Powerhand SG sorting grapple is also ideal for scraping down the side of walls or bins.

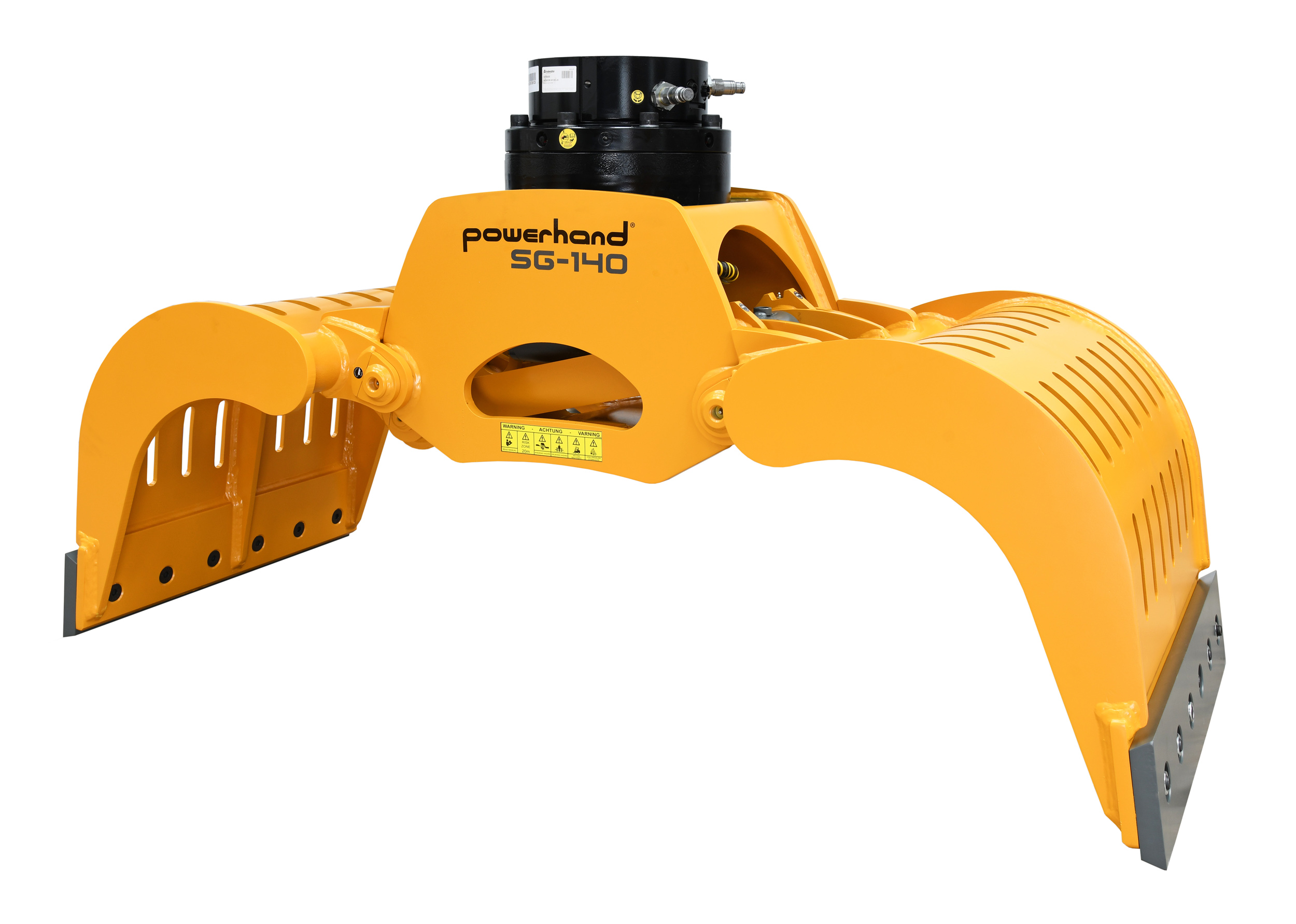

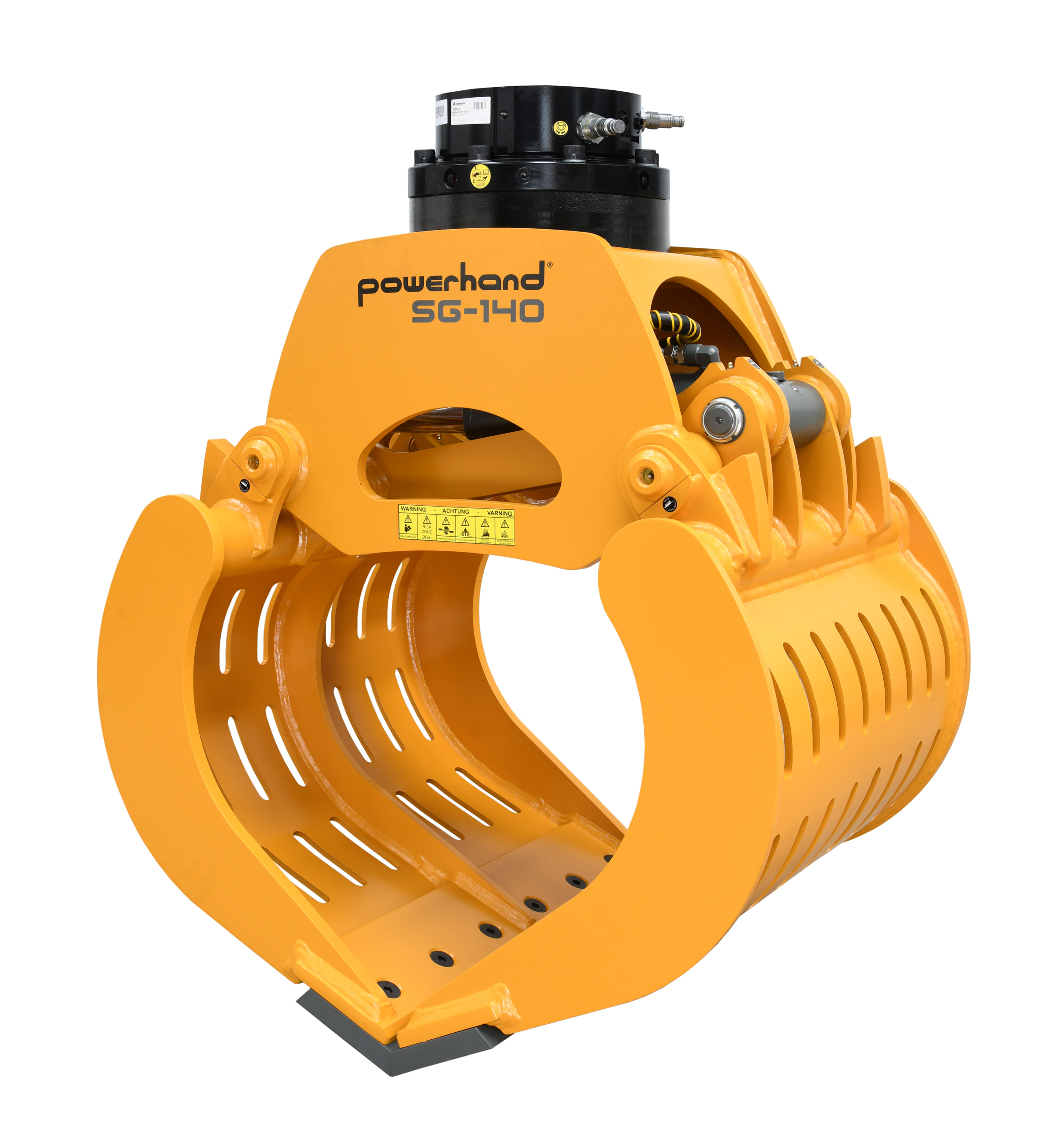

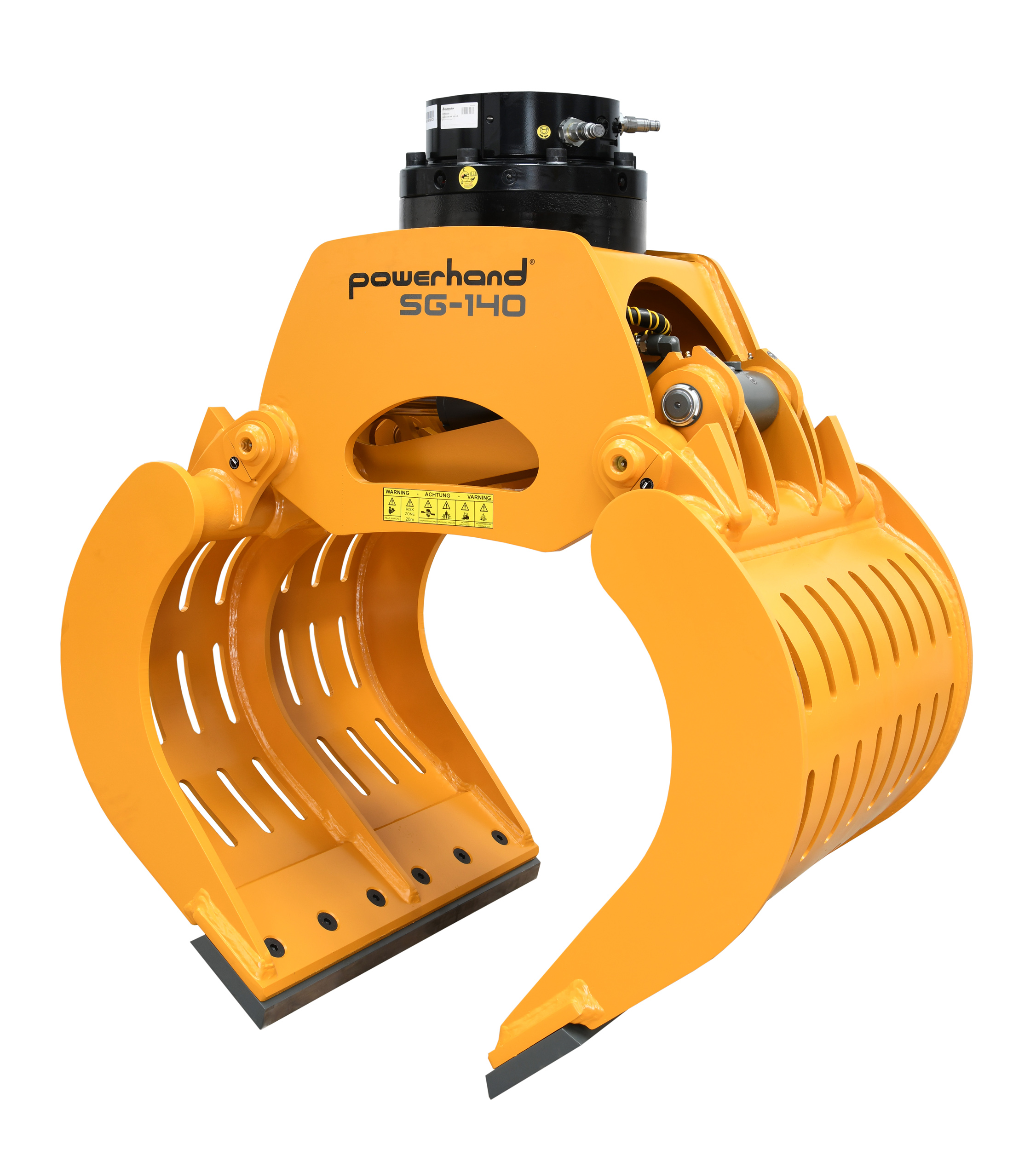

The machined top plate on the SG grab makes for easy integration of rotation units from the Indexator XR Series hydraulic motor or S-Series brackets for tilt rotator installations.
Powerhand SG Grapples are available in capacities from 280 litres to 750 litres for use on excavator sizes 6 tonnes to 30 tonnes.
