Powerhand LG Loader Grab

SKU: LGSERIES Categories: ,

Powerhand

Hard wearing, high capacity loader grab

Trusted by many of the largest timber sawmills in the UK and Europe, the Powerhand LG high capacity loader grab...

Read more

Enquire

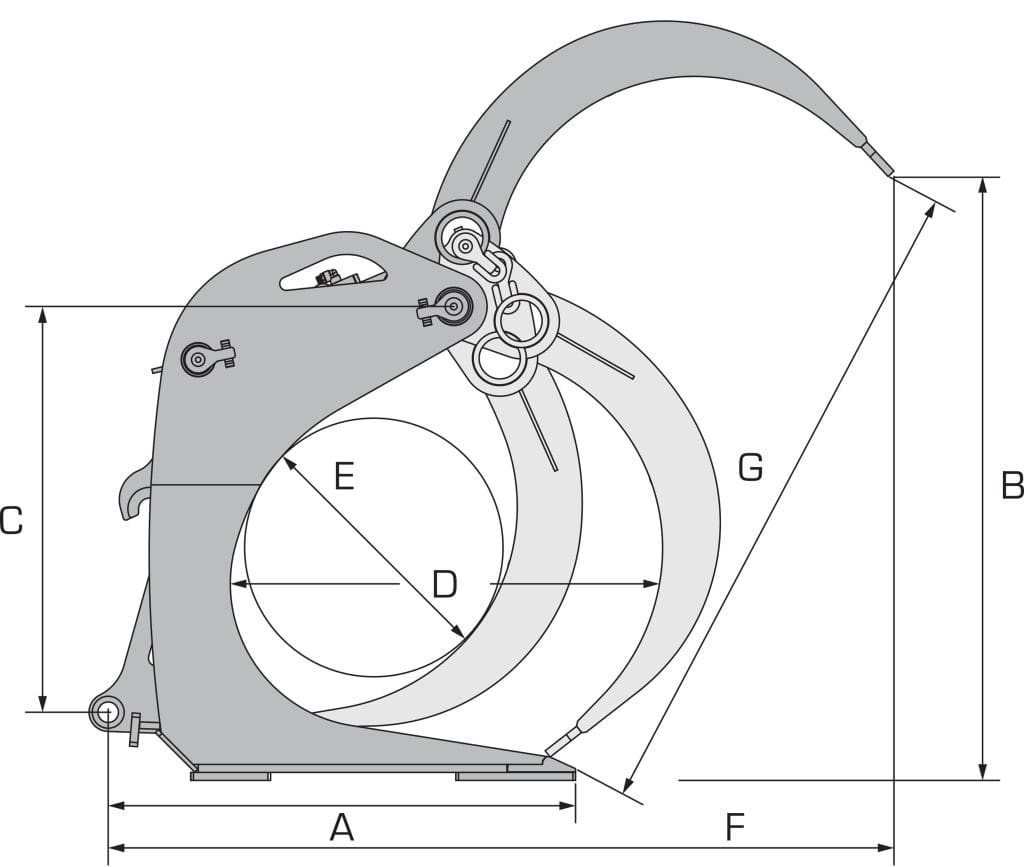

Powerhand LG Loader Grab - Specifications

Dimensions LG50 LG70 LG90 LG110 LG120 LG150
Capacity 1.1m2 1.4m2 1.7m2 2.0m2 2.4m2 3.0m2
Weight 1190kg 1250kg 1460kg 2310kg 2570kg 2850kg
Tine Length (Quick Hitch Mount) A 1557mm 1491mm 1613mm 1762mm 1762mm 2222mm
Jaw Opening B 1892mm 1999mm 2129mm 2263mm 2022mm 3155mm
Pivot Point Height C 1420mm 1470mm 1550mm 1780mm 1992mm 2172mm
Internal Length (Tip to Tip) D 1382mm 1267mm 1528mm 1619mm 1713mm 1999mm
Min Gripping Diameter E Ø866mm Ø801mm Ø886mm Ø973mm Ø967mm Ø1089mm
Overall Open Length F 2400mm 2381mm 2563mm 2960mm 3393mm 3427mm
Span G 2036mm 2171mm 2299mm 2553mm 2547mm 3336mm
Standard Width 1300mm 1600mm 1600mm 1600mm 1800mm 1800mm

Full Description

Trusted by many of the largest timber sawmills in the UK and Europe, the Powerhand LG high capacity loader grab is specially designed to fit onto wheeled loaders.

The compact and strong rear frame design of the LG sawmill loader grab allows you to maintain high machine stability whilst carrying high volume loads of timber. The nature of the work carried out by loader grabs in sawmills results in high levels of wear and tear, however to combat this, Powerhand heat treat all LG grab wear parts. The design also allows wear parts to be easily replaced which greatly improves the lifespan of your sawmill loader grab and decreases downtime in your sawmill operations.

Capacity ranges from 1.1m² to 3.0m².

Benefits

  • A Perfect Fit  The Powerhand LG Series can be built to suit your bin width. We understand that every sawmill is different therefore, our loader grabs can be manufactured at any width so that your bespoke LG Series offers the perfect fit to your bins.
  • All Inclusive Powerhand LG series can be built to suit any machine. We know you all have different preferences for your base machine, that is why we offer our LG series quick hitch or direct mount rear frame to fit the machine of your choice.
  • Dexterity at its finest  Optional inner leg allows picking of single logs. Whether a single log or a full mouthful, always achieve the perfect load with the Powerhand LG series optional inner leg. For too long loader grabs have been incapable of carrying small loads but, by working with some of the UK’s largest sawmills, we have developed a moving inner leg, allowing a fully enclosed load everytime and no hollow spots where logs can fall out.

DataSheet

Specifications

Working Images
