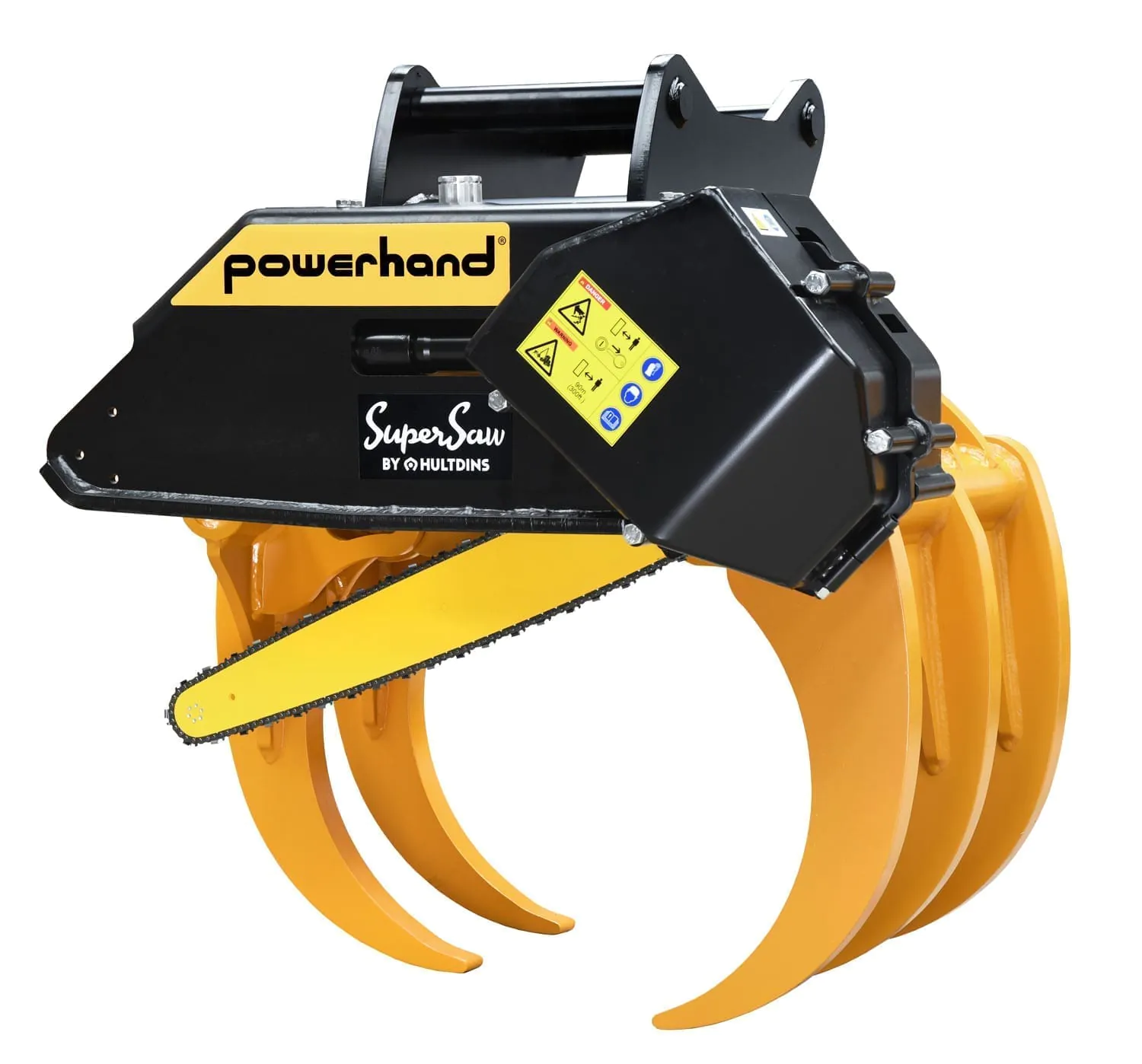

Powerhand Tiltrotator Grapple Saw
The Tiltrotator Grapple Saw from Powerhand is the perfect upgrade for your high-spec tiltrotator excavator, enhancing both versatility and efficiency. The forestry grapple headstock is specifically configured with a tiltrotator hitch bracket for seamless attachment, and fully integrated quick coupler brackets are available upon request.
The Tiltrotator Grapple Saw from Powerhand is the perfect upgrade for your high-spec tiltrotator excavator, enhancing both versatility and efficiency....
Read more

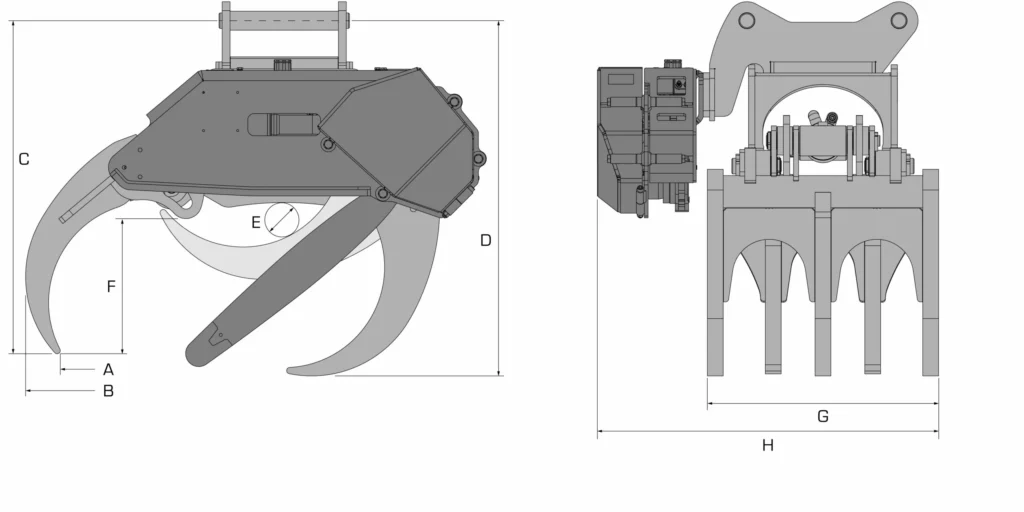

Powerhand Tiltrotator Grapple Saw - Specifications
| EX25 | EX28 | EX36 | EX40 | ||
|---|---|---|---|---|---|
| Capacity (m2) | 0.25 | 0.28 | 0.36 | 0.40 | |
| Weight (kg) | 608 | 781 | 947 | 1180 | |
| Opening (mm) | A | 1428 | 1412 | 1720 | 1937 |
| Max Opening (mm) | B | 1641 | 1632 | 1928 | 2137 |
| Open Height (mm) | C | 1038 | 1052 | 1134 | 1218 |
| Tip to Tip Height (mm) | D | 1113 | 1121 | 1262 | 1378 |
| Minimum Gripping Diameter (mm) | E | 117 | 106 | 128 | 138 |
| Clearance (mm) | F | 466 | 416 | 472 | 492 |
| Width at Tips (mm) | G | 560 | 730 | 800 | 880 |
| Overall Width (mm) | H | 910 | 1080 | 1150 | 1230 |
| Excavator Minimum Weight (kg) | 8000 | 12000 | 16000 | 20000 | |
| Excavator Maximum Weight (kg) | 12000 | 25000 | 25000 | 30000 | |
| Adaptor | S45 / S60 | S60 / S70 | S60 / S70 | S70 / S80 | |
| Saw Motor | 10cc | 10cc | 10cc | 10cc | |
| Chain | 0.404″ | 0.404″ | 0.404″ | 0.404″ | |
| Max Bar Length (mm) | 900 | 900 | 900 | 1000 | |
| Max Cut Diameter (mm) | 600 | 600 | 650 | 700 |
Full Description
The Tiltrotator Grapple Saw from Powerhand is the perfect upgrade for your high-spec tiltrotator excavator, enhancing both versatility and efficiency. The forestry grapple headstock is specifically configured with a tiltrotator hitch bracket for seamless attachment, and fully integrated quick coupler brackets are available upon request.
Designed with an angled configuration, this forestry grapple saw allows for precise cutting in both horizontal and vertical orientations.
Our customisable grapple saw packages offer a choice between 0.404″ or 3/4″ pitch harvester chains, ensuring optimal timber cutting performance tailored to your specific needs.
Built for use with excavators in the 8-30 ton weight class, this grapple saw is a must-have tool for safe, efficient, and effective forestry, tree care, and site clearance operations.
Specifications

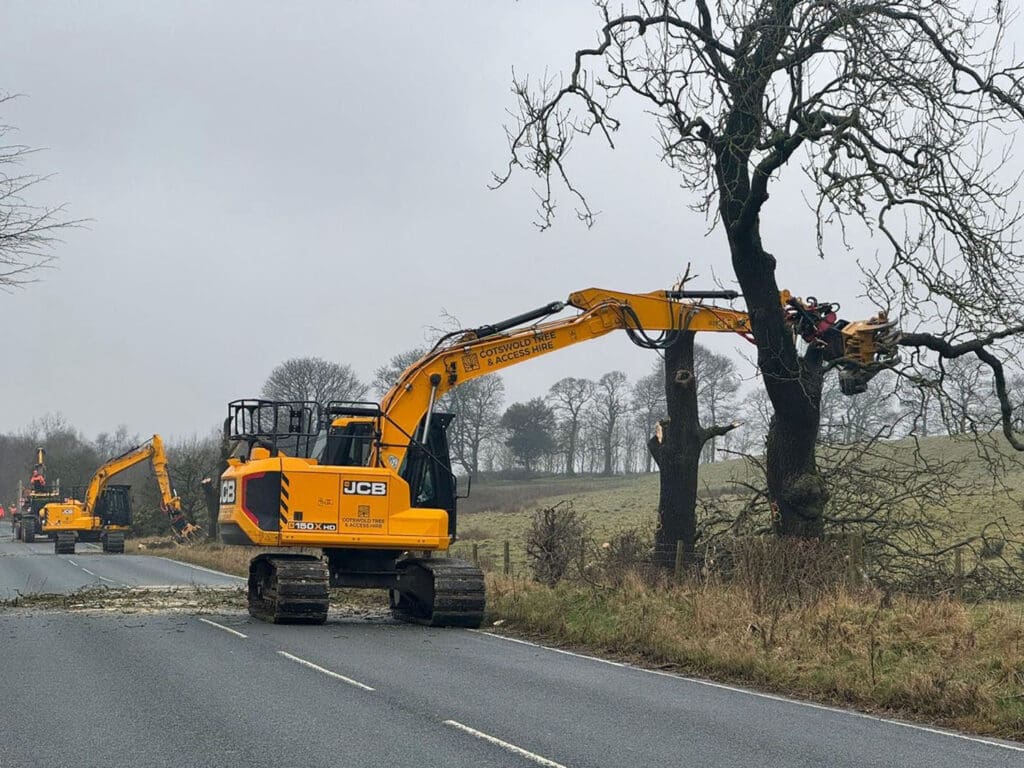

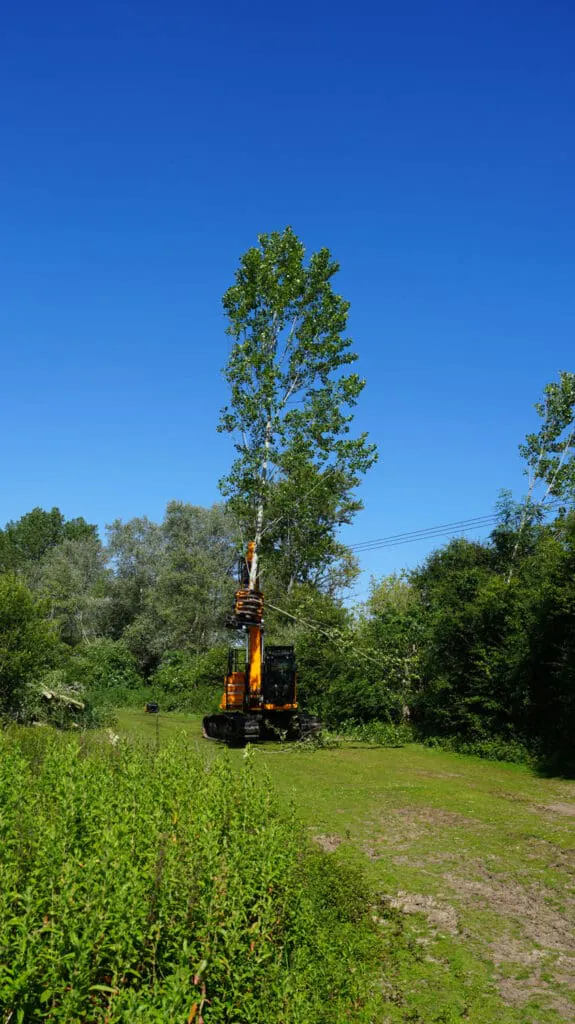

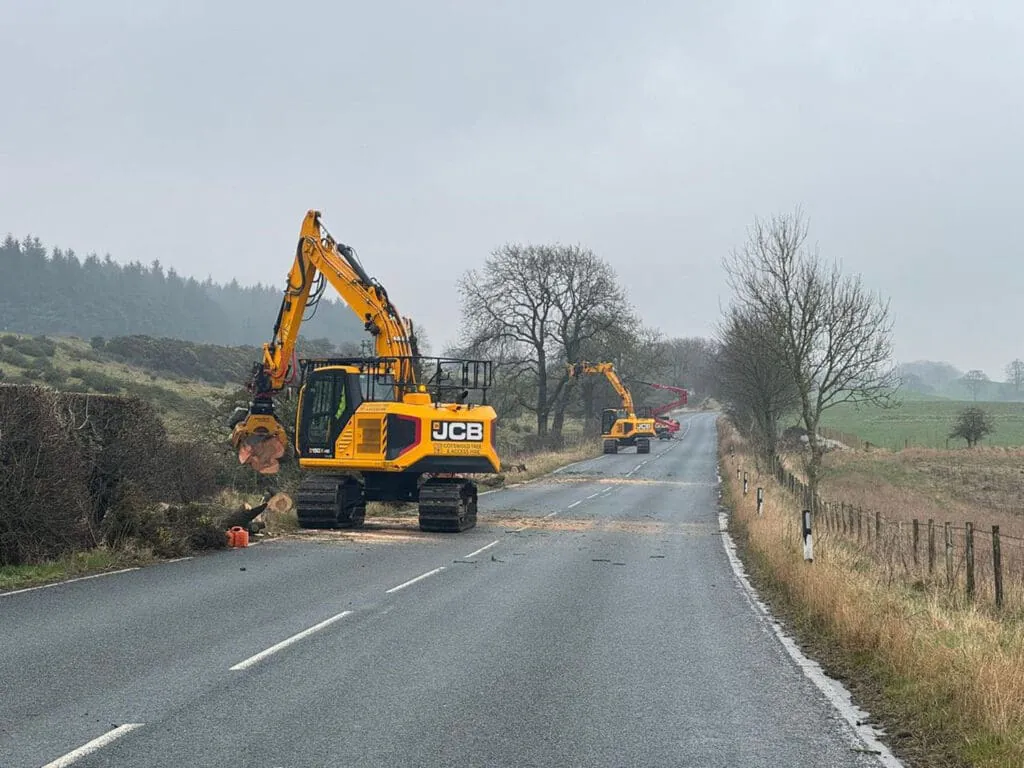

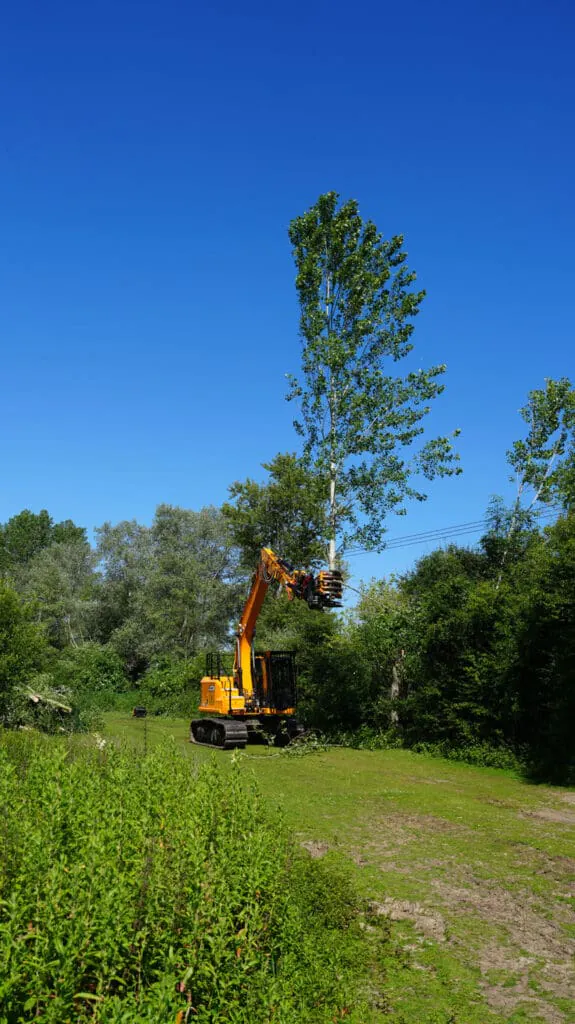

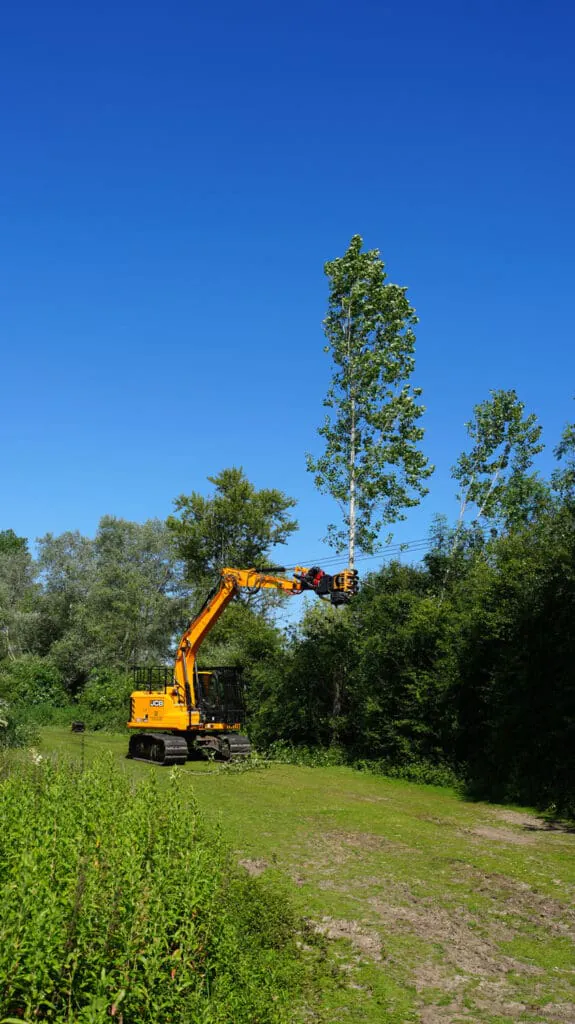

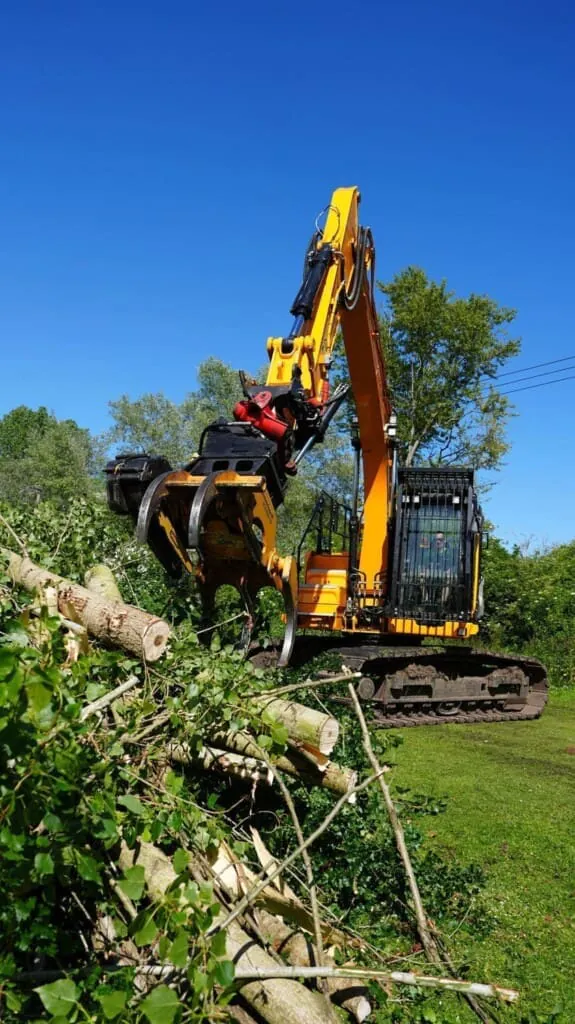

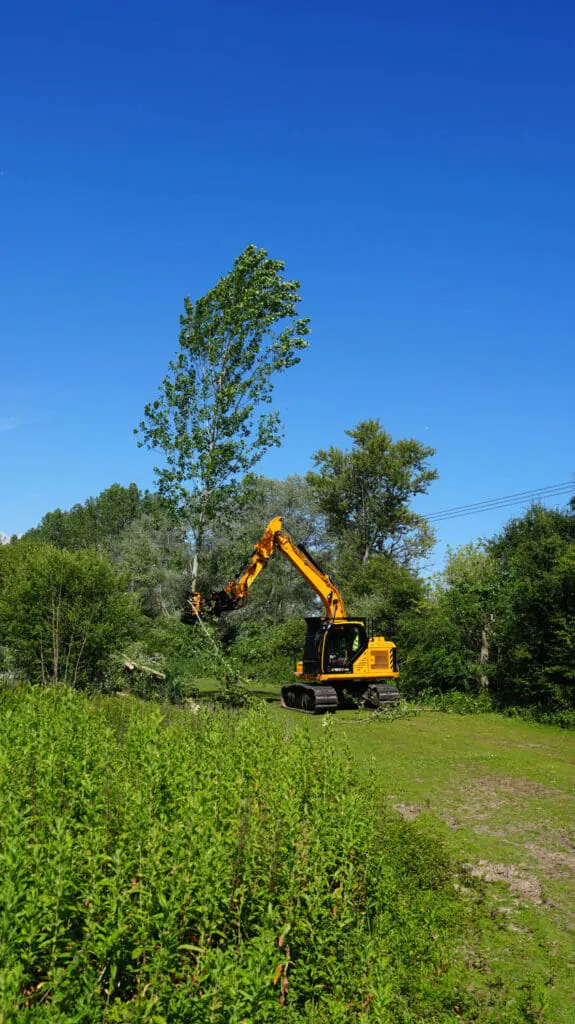

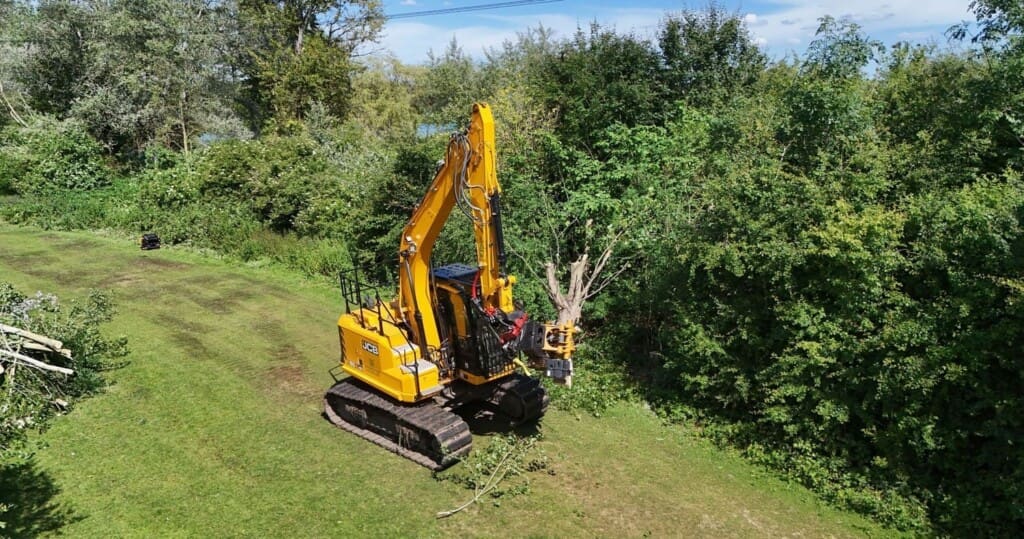

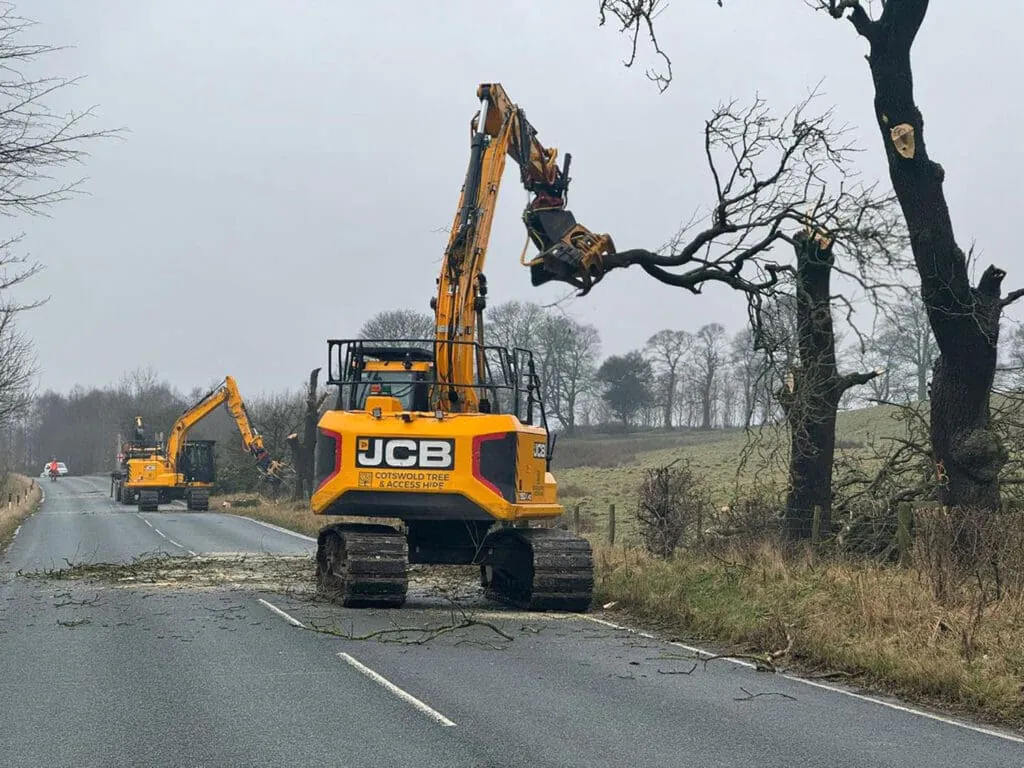

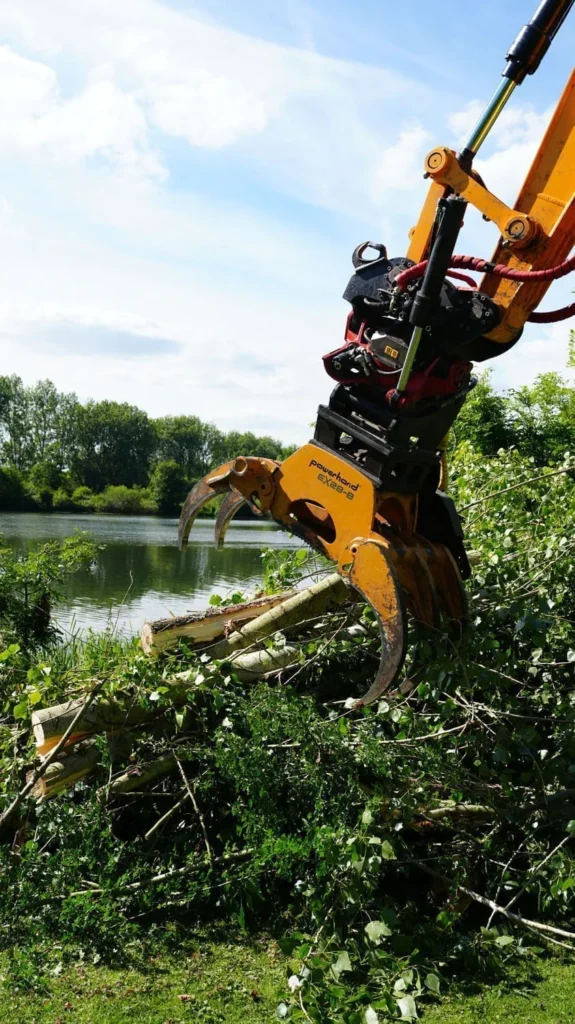

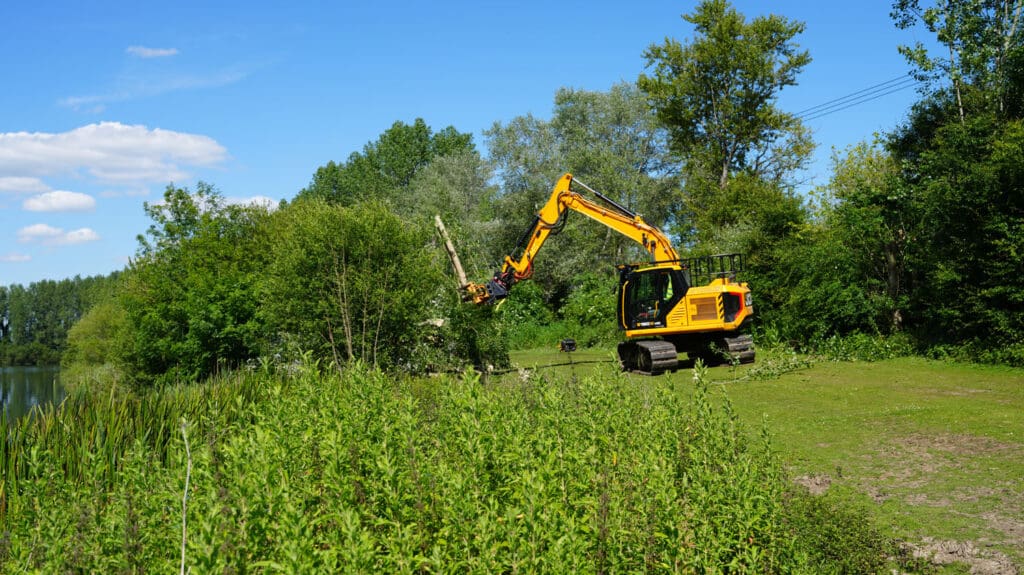

Working Images
