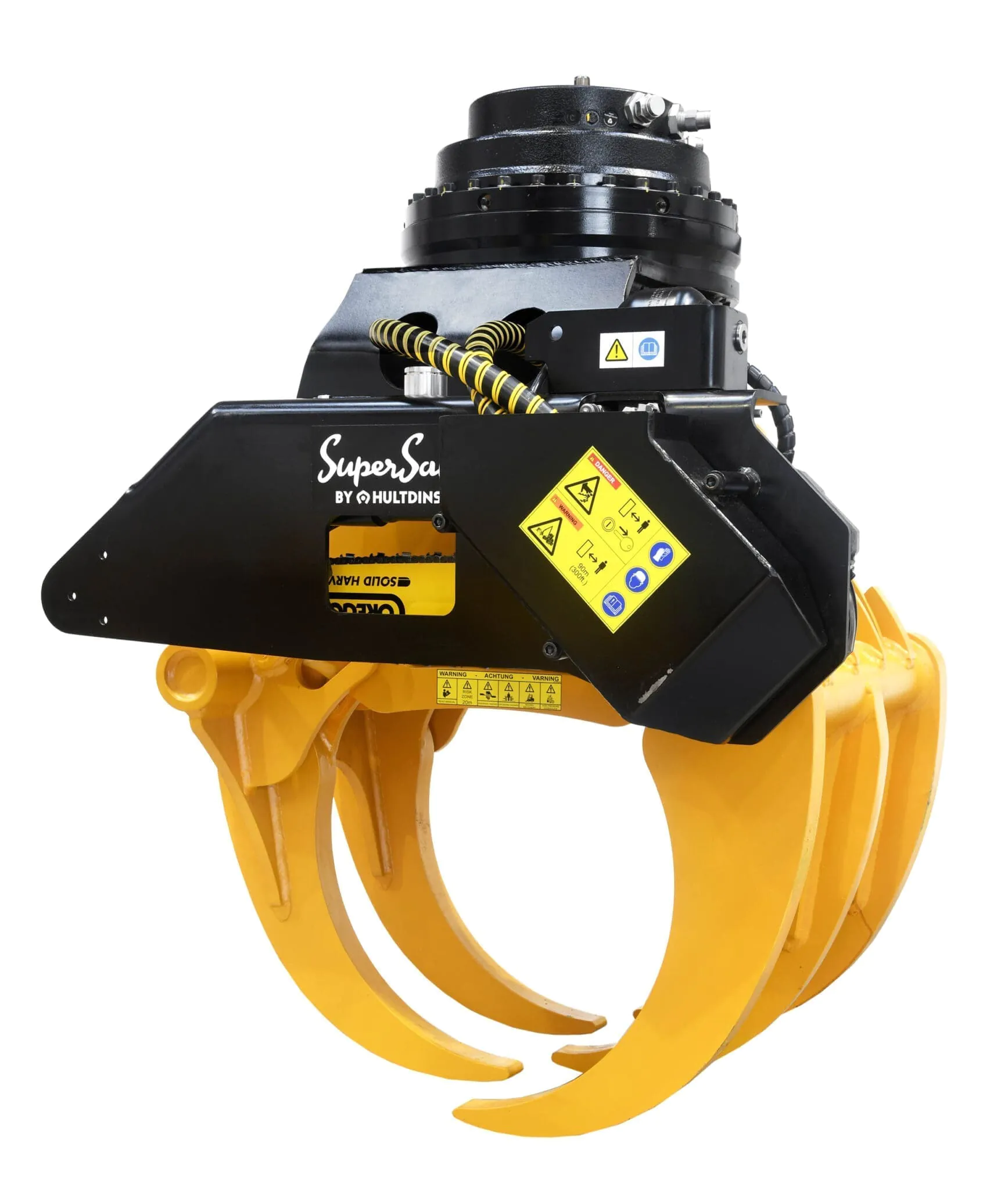

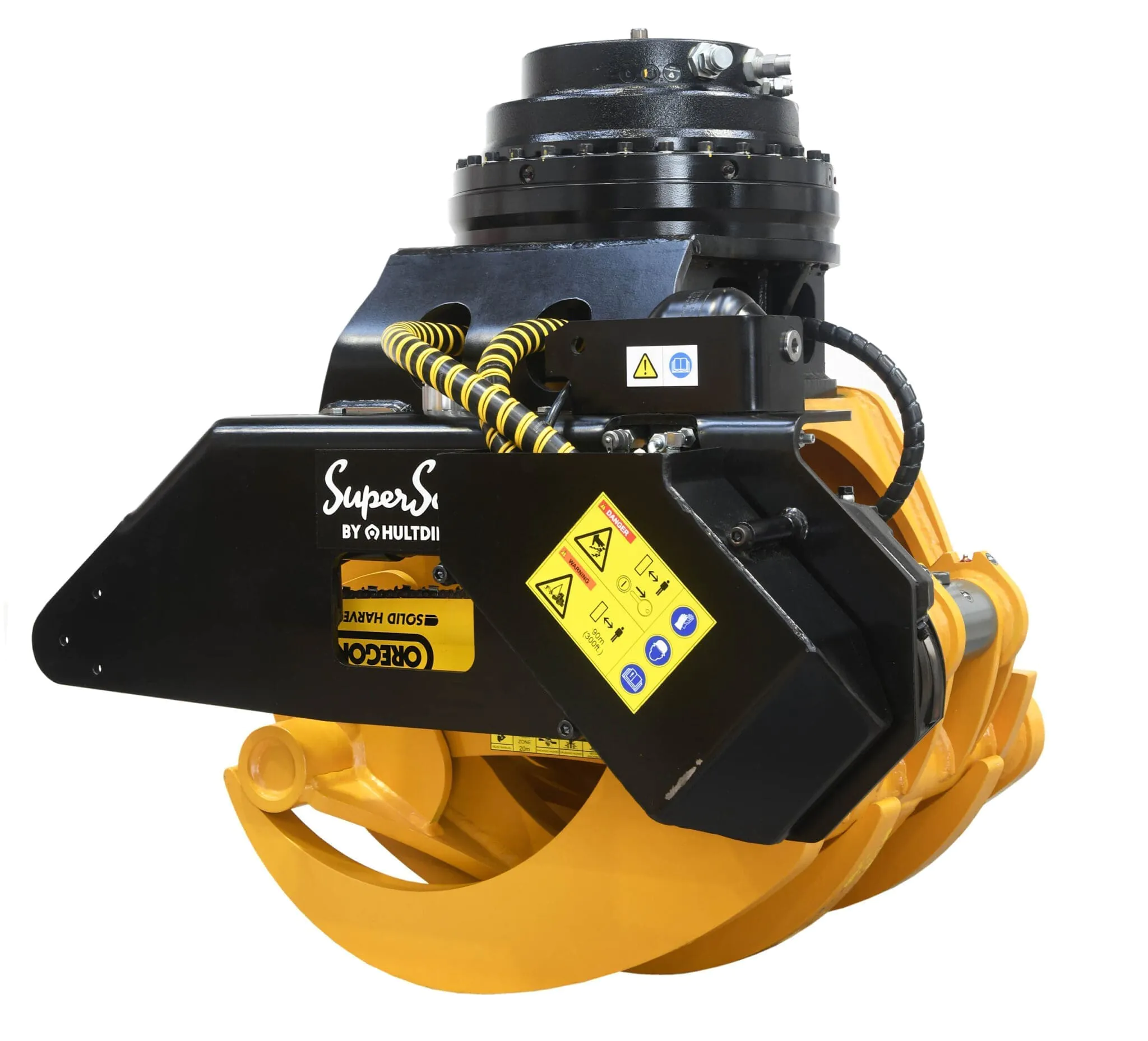

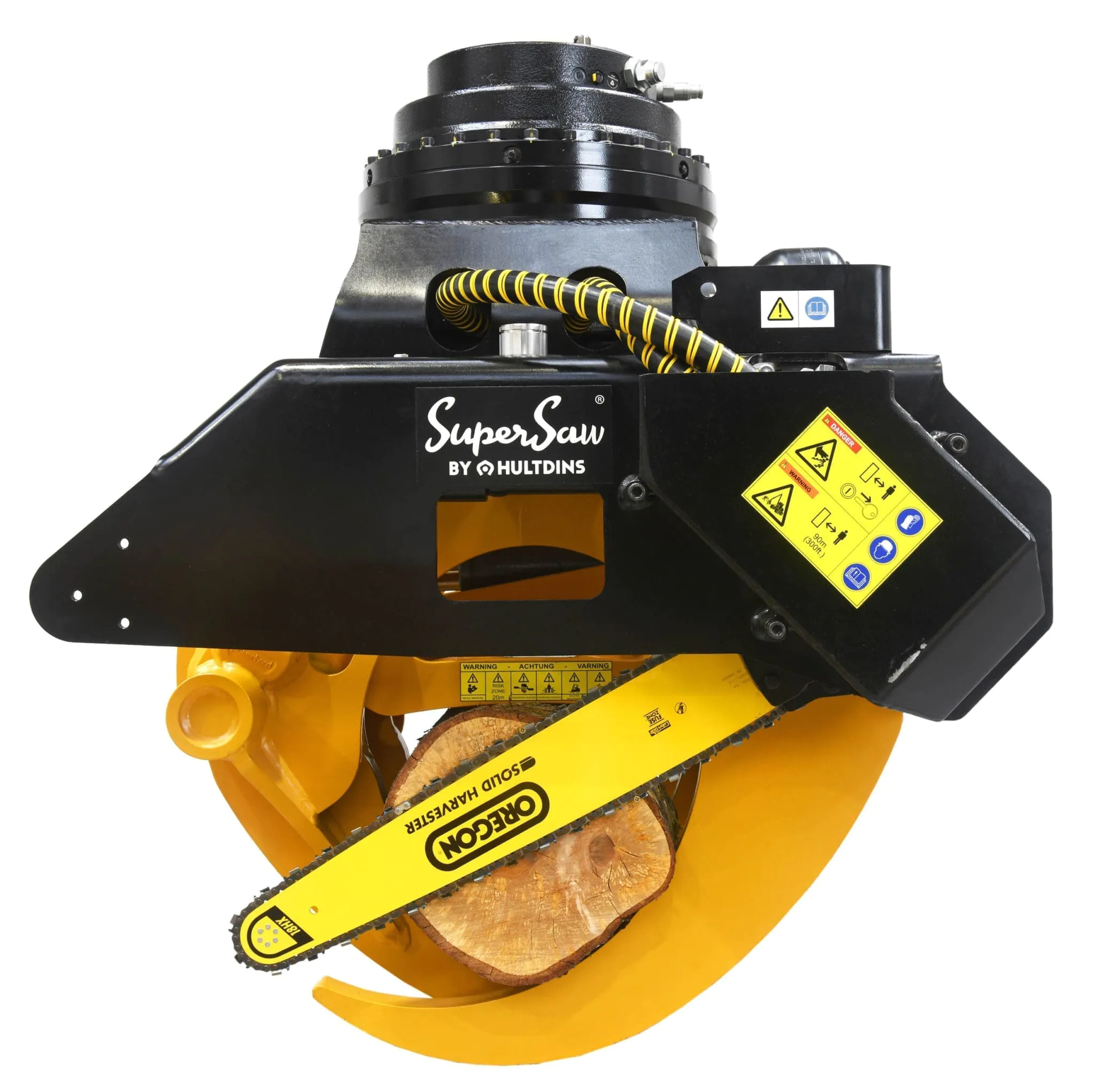

Powerhand Forestry Excavator Grapple Saw
Take your forestry operations to the next level with the Powerhand Forestry Grapple Saw. Our grapple saw packages are customisable to meet your specific needs, offering a choice between 0.404″ or 3/4″ pitch harvester chain saw cassettes. Each package comes equipped with the robust Indexator XR400 SAW rotation unit, delivering high torque for seamless and powerful rotation.
Take your forestry operations to the next level with the Powerhand Forestry Grapple Saw. Our grapple saw packages are customisable...
Read more

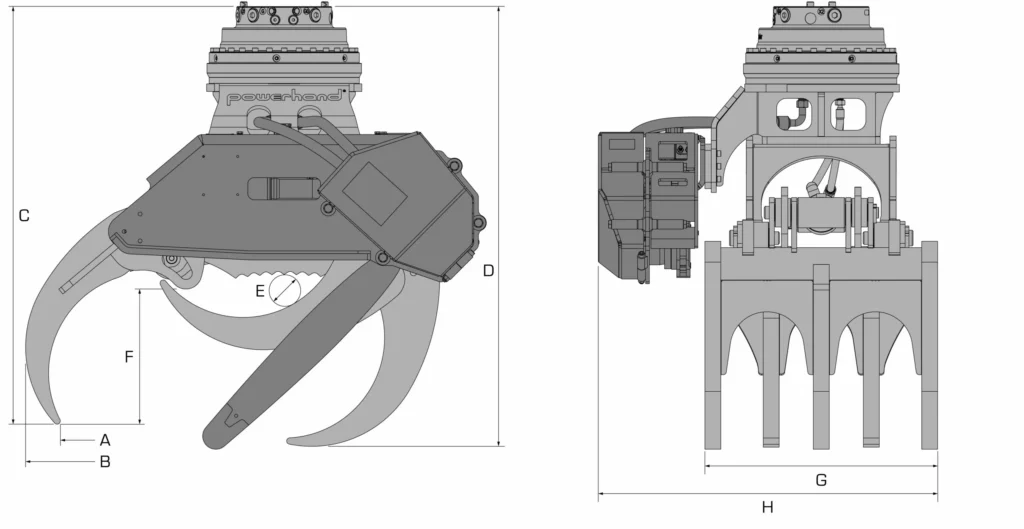

Powerhand Forestry Excavator Grapple Saw - Specifications
| EX25 | EX28 | EX36 | ||
|---|---|---|---|---|
| Capacity (m2) | 0.25 | 0.28 | 0.36 | |
| Weight (kg) | 651 | 986 | 1176 | |
| Opening (mm) | A | 1428 | 1412 | 1720 |
| Max Opening (mm) | B | 1641 | 1632 | 1928 |
| Open Height (mm) | C | 1268 | 1320 | 1386 |
| Tip to Tip Height (mm) | D | 1339 | 1389 | 1510 |
| Minimum Gripping Diameter (mm) | E | 117 | 106 | 128 |
| Clearance (mm) | F | 466 | 416 | 472 |
| Width at Tips (mm) | G | 560 | 730 | 800 |
| Overall Width (mm) | H | 947 | 1064 | 1131 |
| Excavator Minimum Weight (kg) | 8000 | 12000 | 16000 | |
| Excavator Maximum Weight (kg) | 12000 | 25000 | 25000 | |
| Rotator | Indexator XR350 SAW | Indexator XR400 SAW | Indexator XR400 SAW | |
| Rotator Torque @ 25 Mpa (Nm) | 3000 | 7000 | 7000 | |
| RPM | 15-20 | 15-20 | 15-20 | |
| Saw Motor | 10cc | 10cc / 19cc / 30cc | 10cc / 19cc / 30cc | |
| Chain | 0.404″ | 0.404″ / 3/4″ | 0.404″ / 3/4″ | |
| Max Bar Length (mm) | 900 | 900 | 1000 | |
| Max Cut Diameter (mm) | 600 | 600 | 650 |
Full Description
Take your forestry operations to the next level with the Powerhand Forestry Grapple Saw. Our grapple saw packages are customisable to meet your specific needs, offering a choice between 0.404″ or 3/4″ pitch harvester chain saw cassettes. Each package comes equipped with the robust Indexator XR400 SAW rotation unit, delivering high torque for seamless and powerful rotation.
Ideal for forestry site clearance, cross-cutting oversized timber, or managing windblown areas, the Powerhand Grapple Saw is engineered to handle tough jobs with precision and ease.
Designed for excavators in the 12-30 ton weight class, this tool is the perfect addition to any serious forestry operation.
Specifications

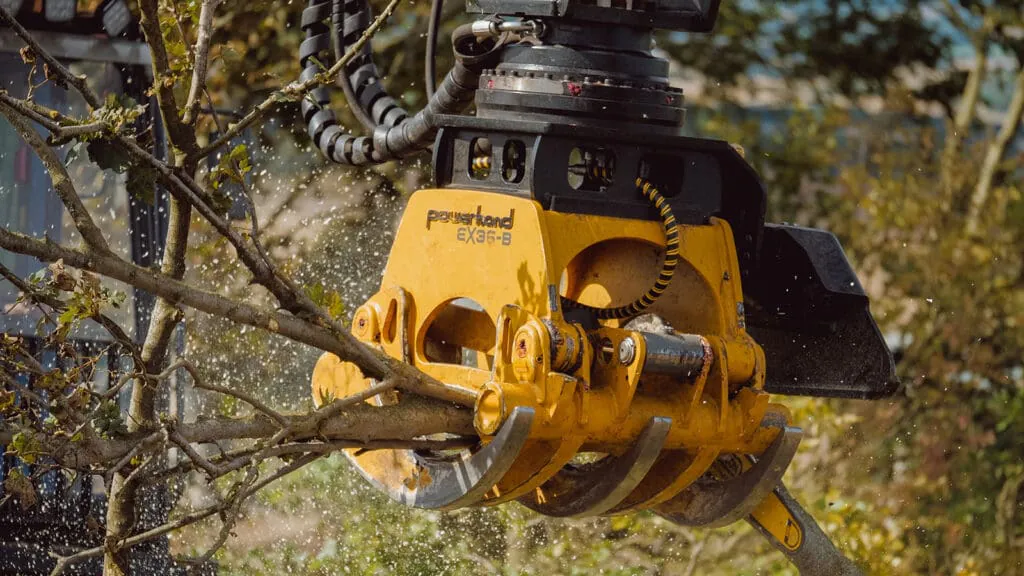

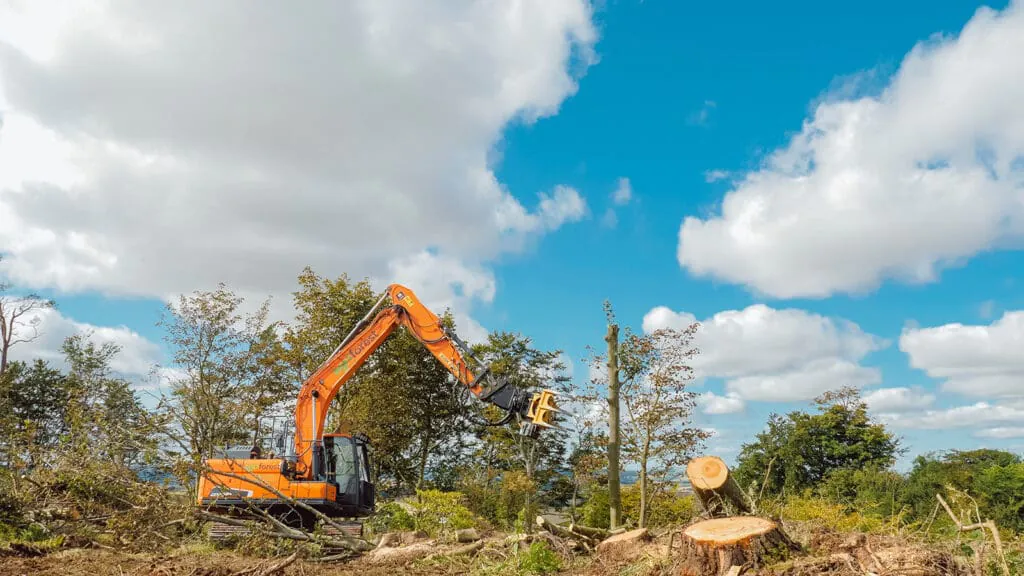

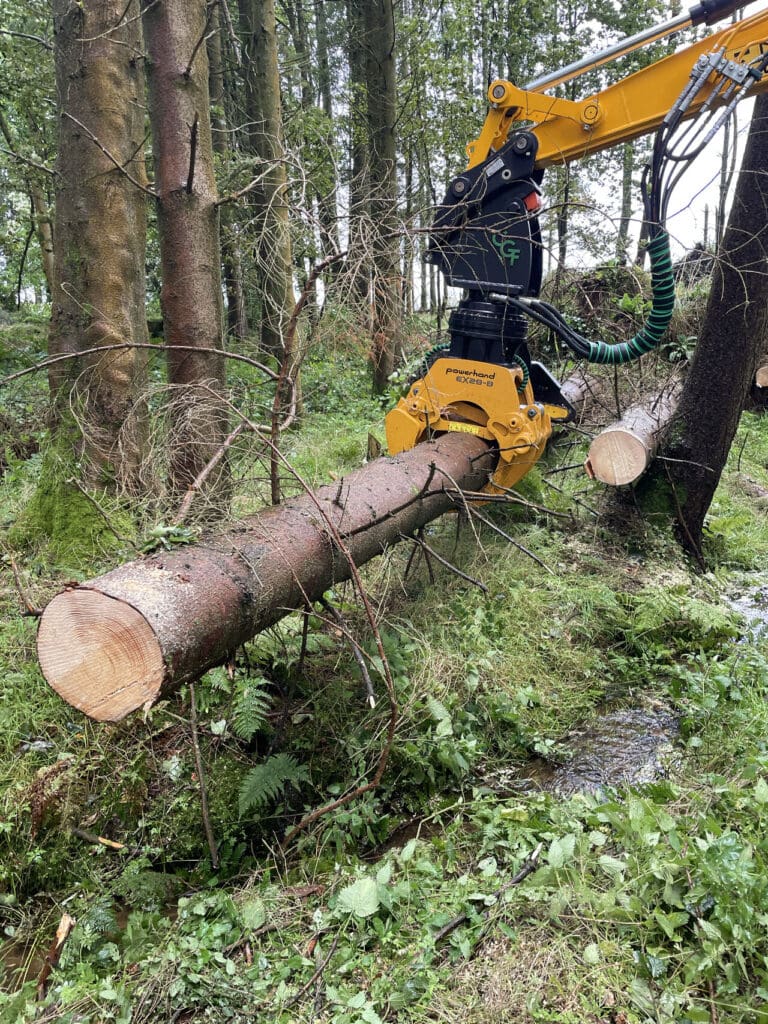

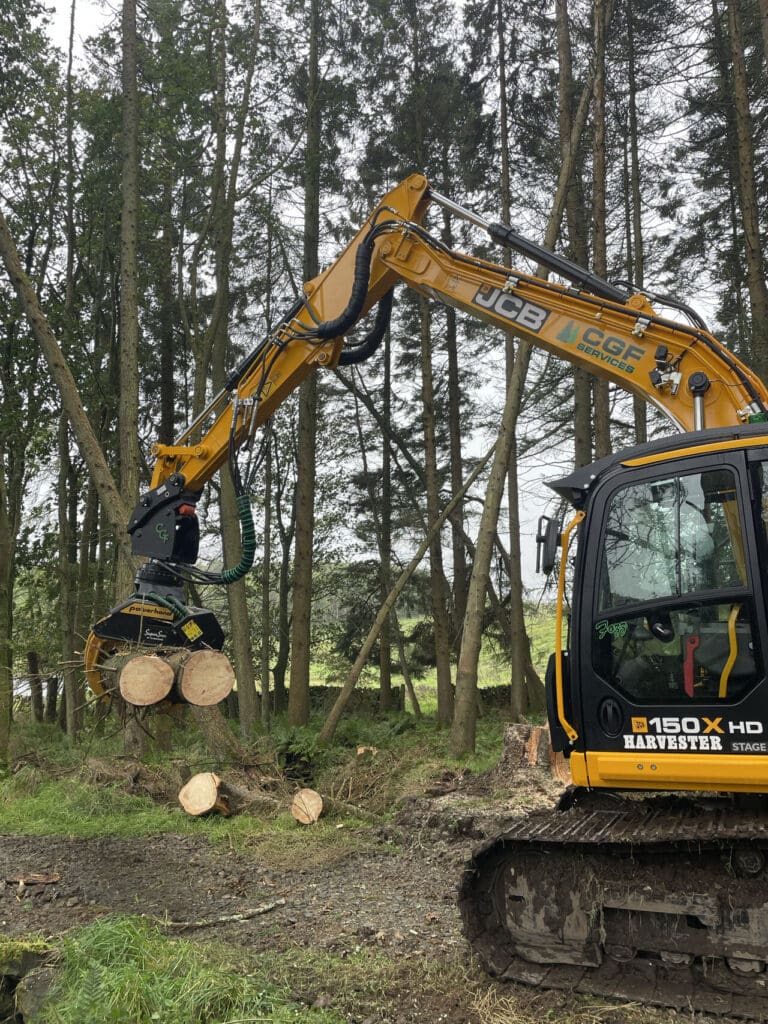

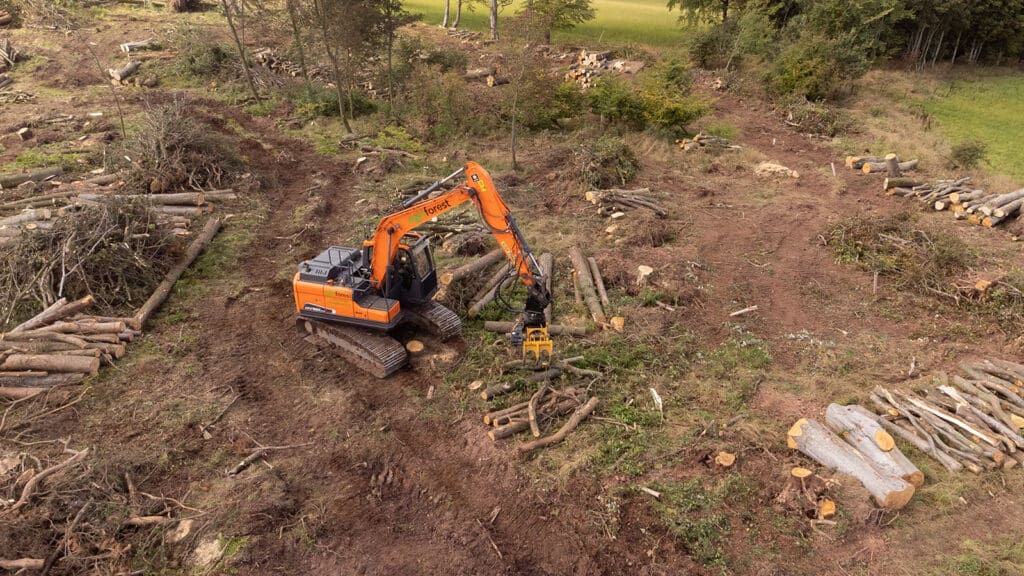

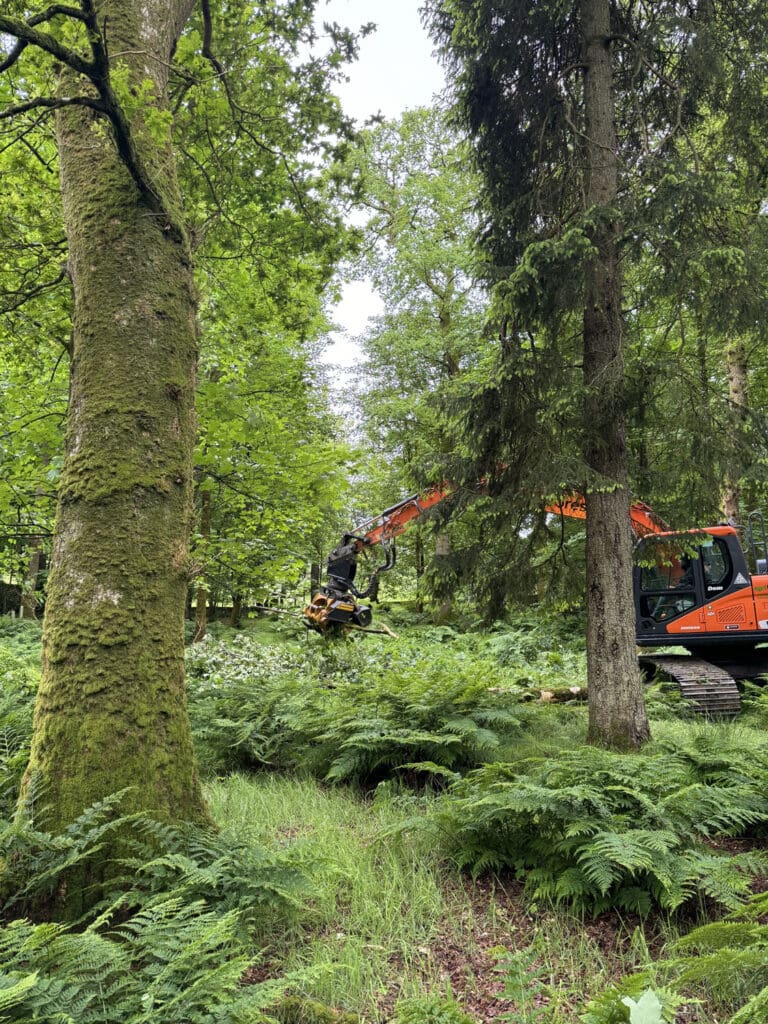

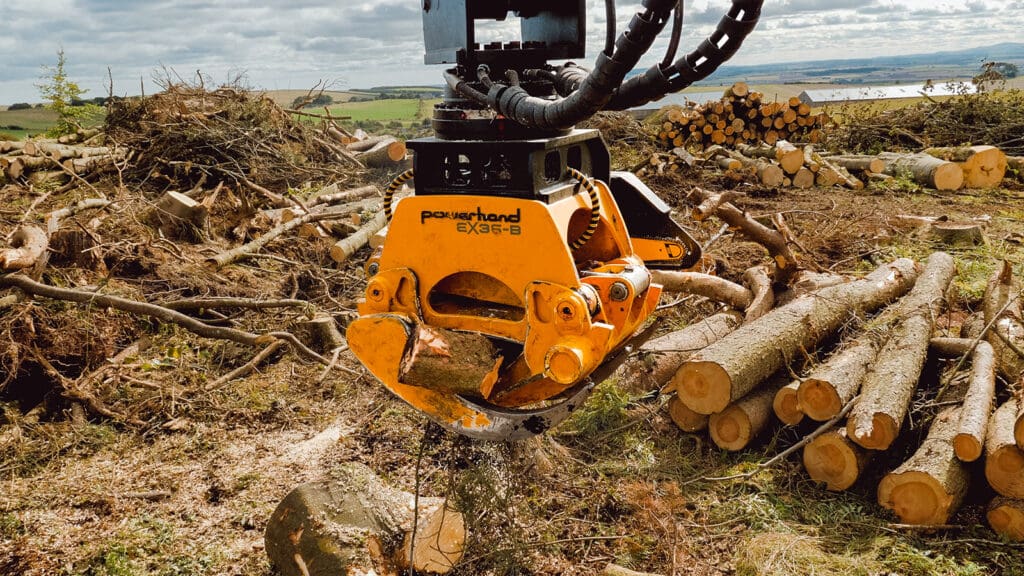

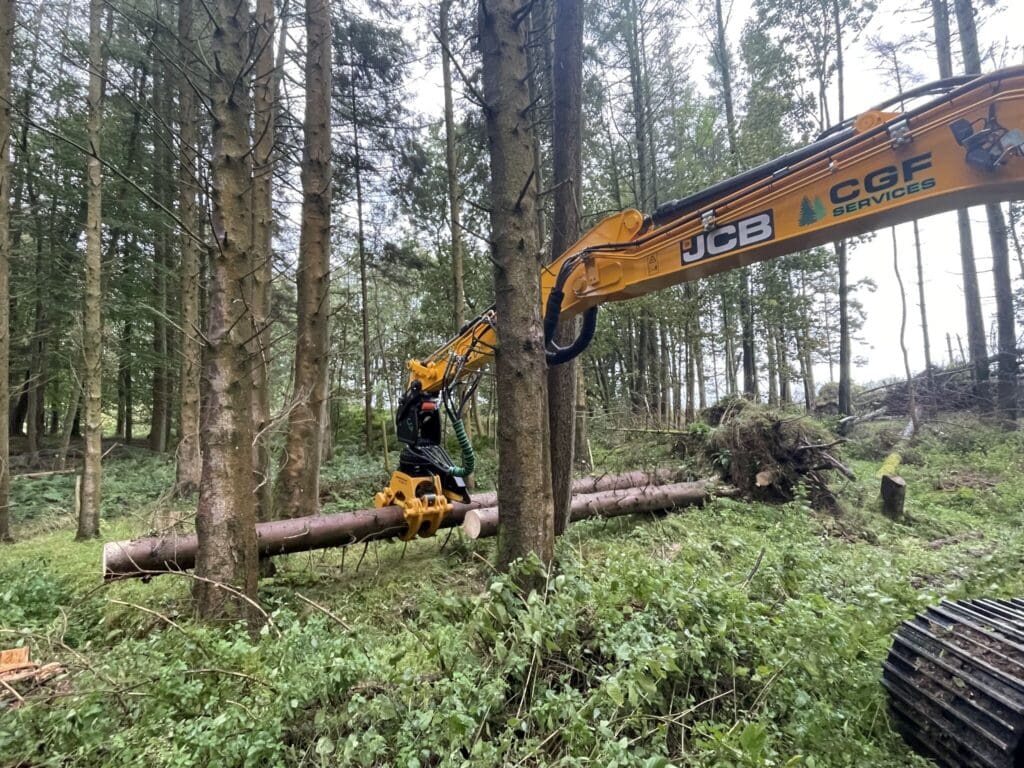

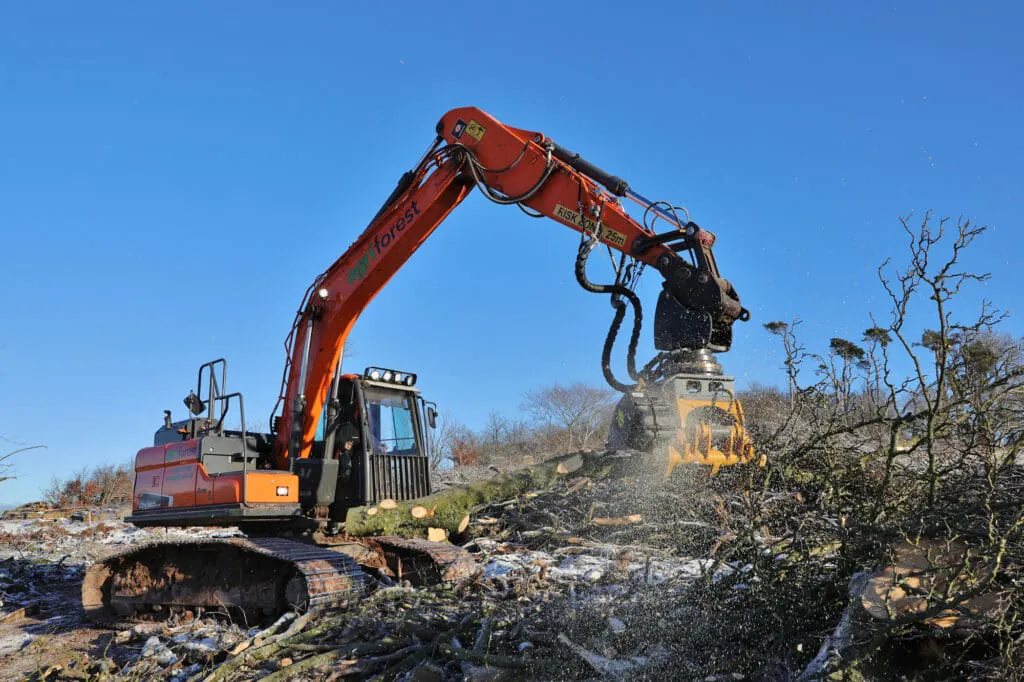

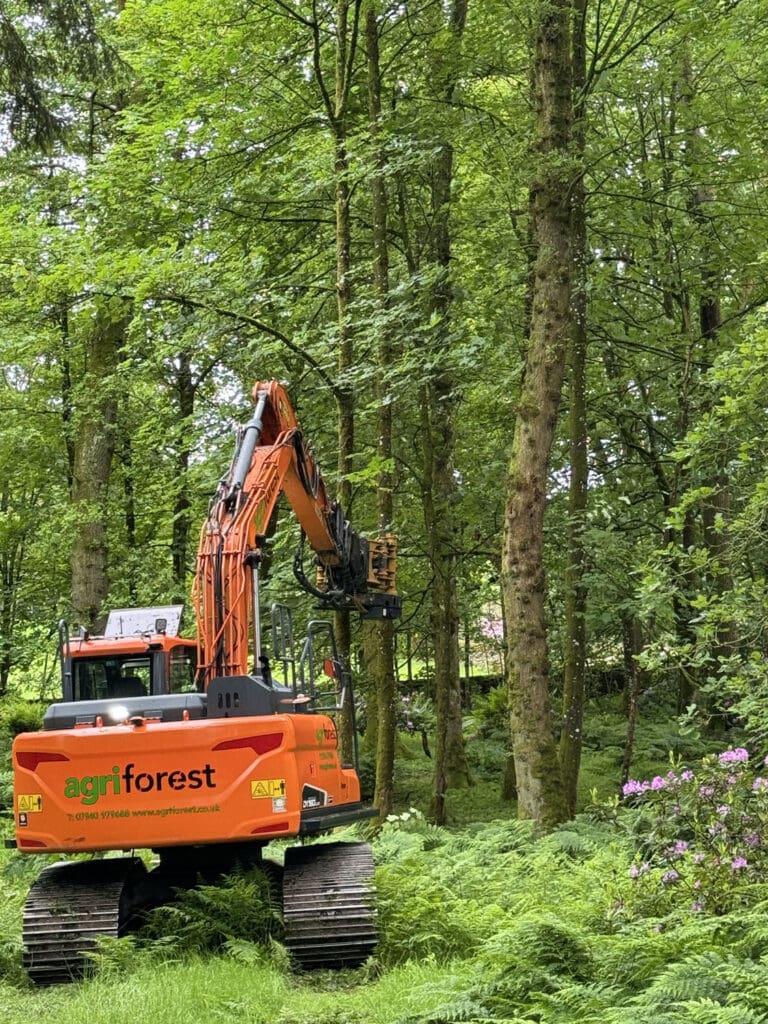

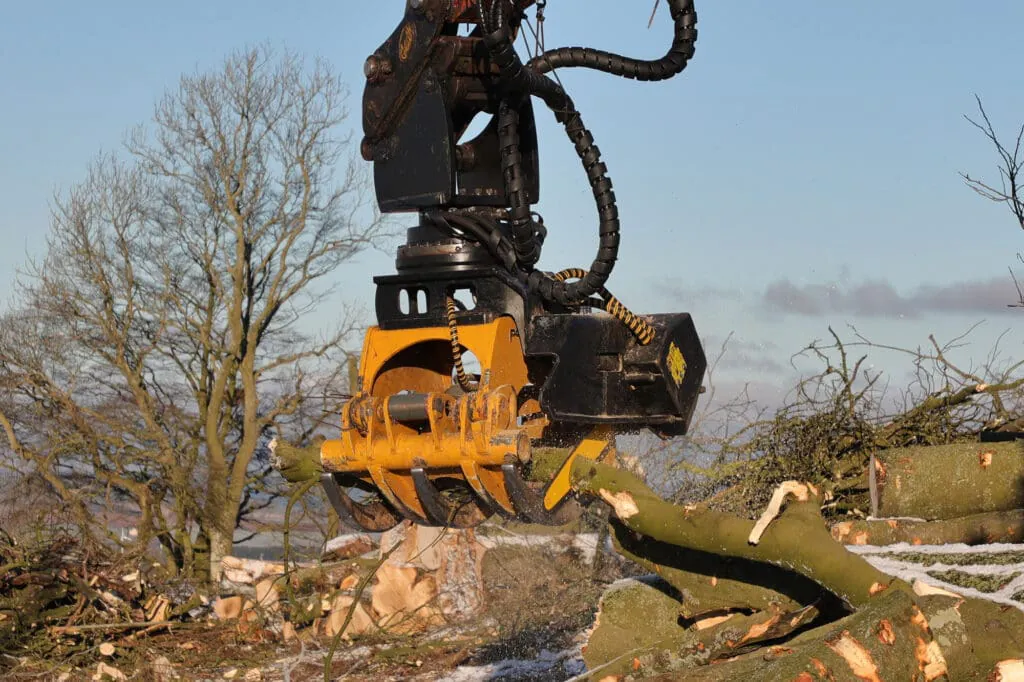

Working Images
