Powerhand Tree Care Grapple Saw
The Powerhand Tree Care Grapple Saw is the ideal solution for tree care and site clearance tasks where a secure hold is essential. Featuring high-performance worm drives, this grapple saw provides a positive mechanical lock, ensuring that limbs and trees are safely and accurately lowered to the ground after cutting.
The Powerhand Tree Care Grapple Saw is the ideal solution for tree care and site clearance tasks where a secure...
Read more

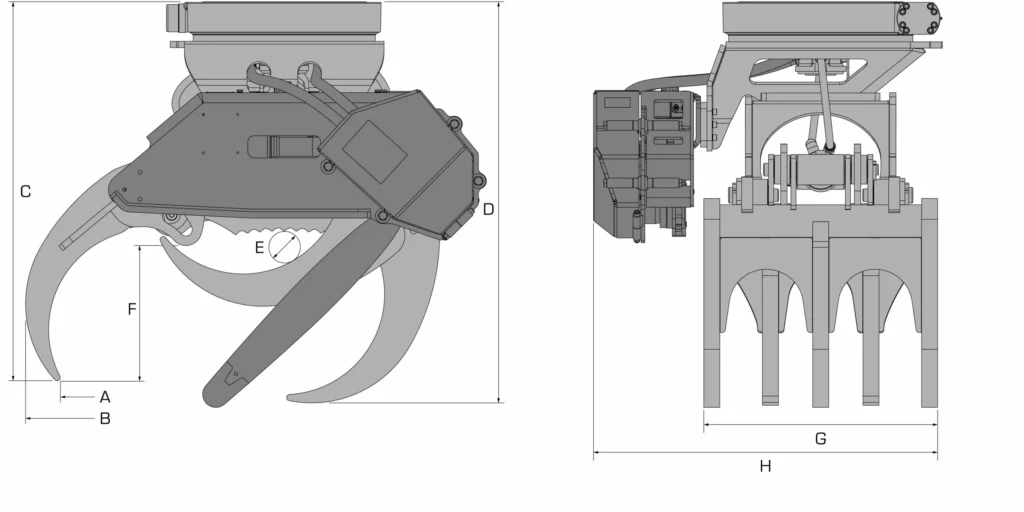

Powerhand Tree Care Grapple Saw - Specifications
| EX25 | EX28 | EX36 | EX40 | ||
|---|---|---|---|---|---|
| Capacity (m2) | 0.25 | 0.28 | 0.36 | 0.40 | |
| Weight (kg) | 634 | 1045 | 1228 | 1420 | |
| Opening (mm) | A | 1428 | 1412 | 1720 | 1937 |
| Max Opening (mm) | B | 1641 | 1632 | 1928 | 2137 |
| Open Height (mm) | C | 1047 | 1276 | 1343 | 1391 |
| Tip to Tip Height (mm) | D | 1117 | 1467 | 1558 | 1558 |
| Minimum Gripping Diameter (mm) | E | 117 | 106 | 128 | 138 |
| Clearance (mm) | F | 466 | 416 | 472 | 492 |
| Width at Tips (mm) | G | 560 | 730 | 800 | 880 |
| Overall Width (mm) | H | 999 | 1074 | 1131 | 1210 |
| Excavator Minimum Weight (kg) | 8000 | 12000 | 16000 | 20000 | |
| Excavator Maximum Weight (kg) | 12000 | 25000 | 25000 | 30000 | |
| Rotator | Worm Drive | Worm Drive | Worm Drive | Worm Drive | |
| Saw Motor | 10cc | 10cc / 19cc / 30cc | 10cc / 19cc / 30cc | 19cc / 30cc | |
| Chain | 0.404″ | 0.404″ / 3/4″ | 0.404″ / 3/4″ | 0.404″ / 3/4″ | |
| Max Bar Length (mm) | 900 | 900 | 900 | 1000 | |
| Max Cut Diameter (mm) | 600 | 600 | 650 | 700 |
Full Description
The Powerhand Tree Care Grapple Saw is the ideal solution for tree care and site clearance tasks where a secure hold is essential. Featuring high-performance worm drives, this grapple saw provides a positive mechanical lock, ensuring that limbs and trees are safely and accurately lowered to the ground after cutting.
Our customisable grapple saw packages allow you to choose between 0.404″ or 3/4″ pitch harvester chains for optimal cutting performance tailored to your needs.
Designed for use with forestry excavators in the 8-30 ton weight class, this grapple saw is an indispensable tool for efficient, safe, and effective tree care and site clearance operations.
