Powerhand GB Brushwood Grapple
High strength, light weight biomass grapple
The Powerhand GB Series biomass grapple is available for both rigid excavator mount on excavators from 6 tonnes up to...
Read more
Enquire

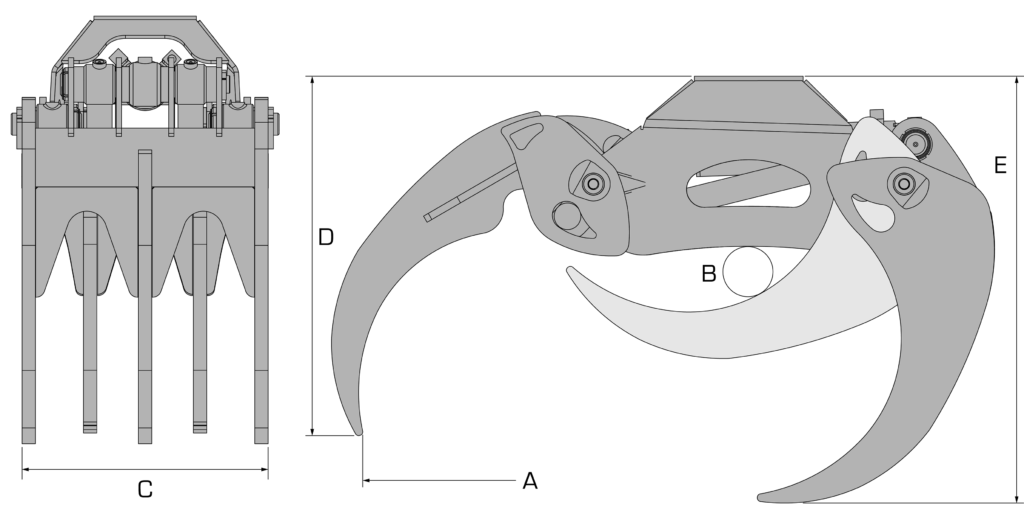

Powerhand GB Brushwood Grapple - Specifications
| Dimensions | GB26 | GB35 | |
| Capacity | 0.26m² | 0.35m² | |
| Weight | 250kg | 315kg | |
| Opening | A | 1524mm | 1836mm |
| Minimum Gripping Diameter | B | 98mm | 121mm |
| Width | C | 476mm | 523mm |
| Height Open | D | 759mm | 758mm |
| Height Tip to Tip | E | 882mm | 957mm |
| Excavator Size | 6 – 12 Tonnes | 10 – 14 Tonnes |

Full Description

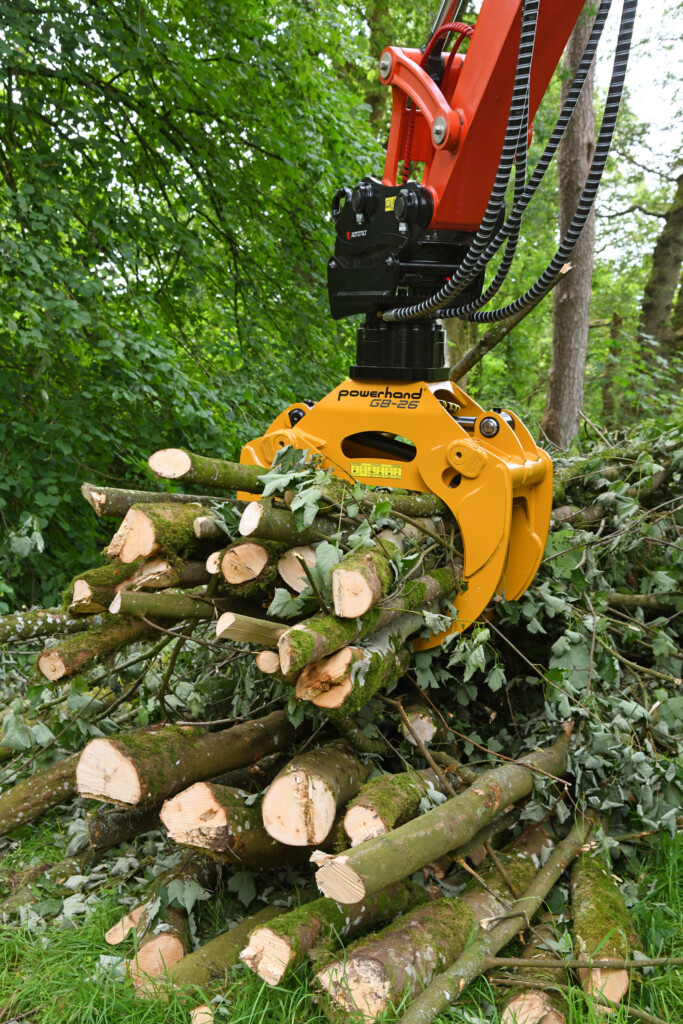

The Powerhand GB Series biomass grapple is available for both rigid excavator mount on excavators from 6 tonnes up to 14 tonnes and swing link mounted for use on excavators and timber cranes.
Combining high strength with light weight, the GB biomass grapples are ideal for the handling of all types of biomass including, timber, branches, scrap wood and materials for recycling.
Available in 0.26m² and 0.35m² capacities with five Hardox tines, these grapples offer the ultimate solution to biomass handling.
DataSheet
Specifications
